Description

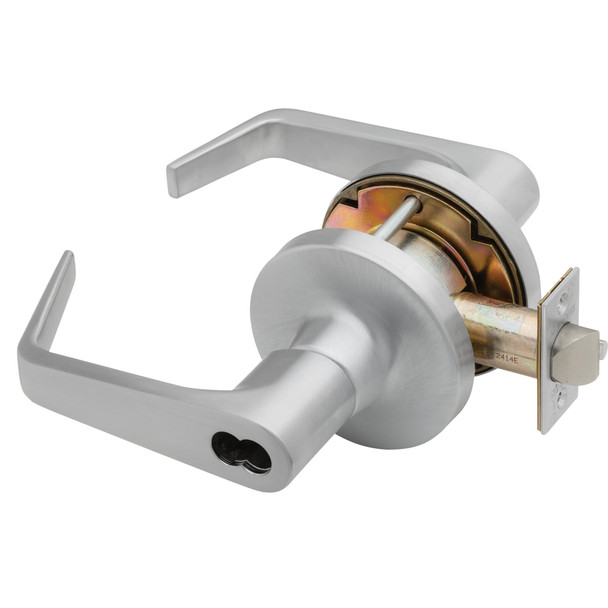

The Falcon T501BD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. It withstands heavy abuse with a compression spring that exceeds ANSI/BHMA Grade 1 testing. The removable cylinder allows quick re-keying, making retrofits simple and cost-effective for facility managers and building owners.
This lock fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin-door adapters and alternate backsets are available. Brass and zinc-plated steel construction resists rust, while stainless steel springs ensure durability. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for specification assistance, keying options, and interchangeable core configurations.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin (5 pinned standard, 6 or 7-pin available)
- Keyway: "G" standard on conventional cylinders, "A" on interchangeable core
- Material: Brass and cold-formed steel, zinc-plated and dichromated
- Springs: Stainless steel and phosphor bronze
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI
- Keys Furnished: Two nickel silver keys
- Handing: Non-handed
