Description

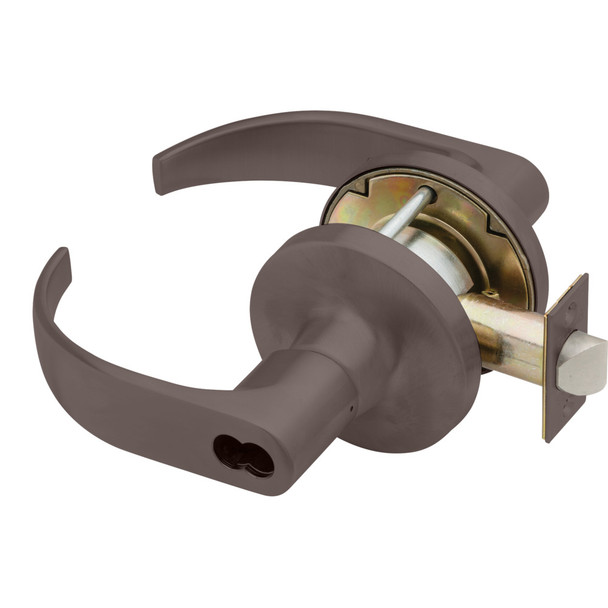

The Falcon T501BD Q 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with compression springs that exceed ANSI/BHMA Grade 1 requirements, it delivers reliable security and durability for commercial doors while offering the solid performance and affordability that facilities managers need.
This lock accepts any manufacturer's cylinder and features easily removable cylinders for quick re-keying, simplifying retrofits and maintenance. As an authorized Falcon dealer, E.D. Locks provides expert guidance on door thickness adapters, backset options, and cylinder configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for custom specifications and fast shipping on orders over $450.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit available)
- Backset: 2-3/4" standard, 2-3/8" available, 5" with link
- Bolt Projection: 9/16" standard, 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" (square corners) standard
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: "G" standard ("A" on interchangeable core)
- Cylinder Housing: Solid brass
- Mechanism: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys standard
