Description

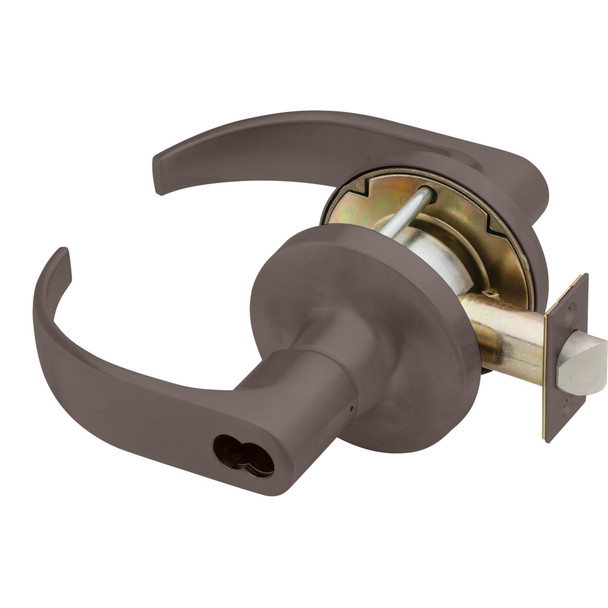

The Falcon T501BD Q 613 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional and commercial applications. Engineered with a compression spring that exceeds ANSI/BHMA Grade 1 testing, this lock delivers reliable security and durability where abuse-resistance matters. The removable cylinder design enables quick re-keying, making retrofits and building updates straightforward.
Standard for 1-3/4" to 2-1/8" door thickness with 2-3/4" backset; adapters and alternatives are available. Brass and stainless steel construction resists rust and corrosion. As an authorized Falcon dealer, E.D. Locks offers expert guidance on handing, keying options, and trim selection. Contact sales@edlocks.com or call 1-877-207-6067 for application support and fast shipping.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8" square corners
- Cylinder: 6-pin (5 pinned standard, 6 or 7-pin available)
- Keyway: "G" standard on conventional cylinders
- Keys Furnished: 2 nickel silver keys standard
- Handing: Non-handed
- Material: Brass and cold-formed steel, zinc plated and dichromated
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
