Description

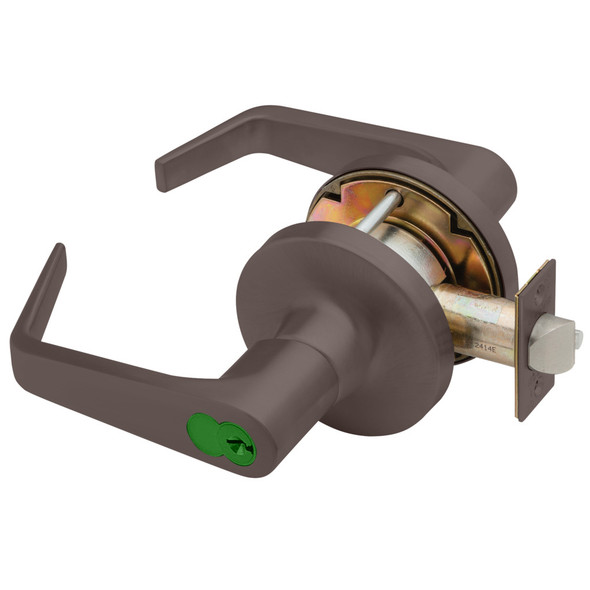

The Falcon T501HD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. It exceeds ANSI/BHMA Grade 1 testing requirements and features a compression spring design that withstands heavy abuse. The removable cylinder allows quick re-keying without replacing the entire lock, making retrofits and maintenance simple and cost-effective.
This lock fits standard doors 1-3/4" to 2-1/8" thick with 2-3/4" backset; thin-door adapters and alternative backsets are available. Interchangeable core options support most manufacturers' formats. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, handing, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support and custom configurations.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (thin-door adapter available)
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Bolt Projection: 9/16" standard (3/4" optional)
- Cylinders: 6-pin drilled, pinned in 5 (6 or 7-pin available)
- Keyway: G standard (A standard on I/C core, other options available)
- Construction: Brass and cold-formed steel, zinc-plated and dichromated; stainless steel and phosphor bronze springs
- Handing: Non-handed
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Keys: Two nickel silver keys furnished
- Interchangeable Core: Available in small format (SFIC) and large format
