Description

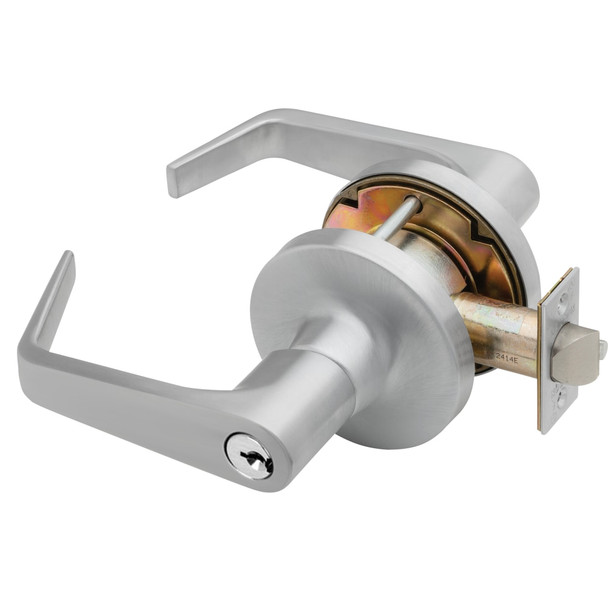

The Falcon T501PD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional applications where durability is non-negotiable. Constructed with compression springs that exceed ANSI/BHMA Grade 1 requirements, this lock features brass and cold-formed steel parts with zinc plating and stainless steel springs for lasting rust resistance. Ideal for schools, hospitals, and multi-tenant buildings.
Standard for 1-3/4" to 2-1/8" door thickness with 2-3/4" backset and 6-pin cylinder drilled with 5 pins. Thin door adapters and alternative backsets are available. The removable cylinder assembly enables simple re-keying without removing the lock body, perfect for retrofits and key changes. As an authorized Falcon dealer, we offer expert guidance on configuration, compatibility, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/8" or 2-3/4" standard
- Cylinder: 6-pin drilled, pinned in 5 (6-pin or 7-pin available)
- Keyway: G keyway standard (A keyway available)
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Material: Brass and cold-formed steel, zinc plated; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys standard
