Description

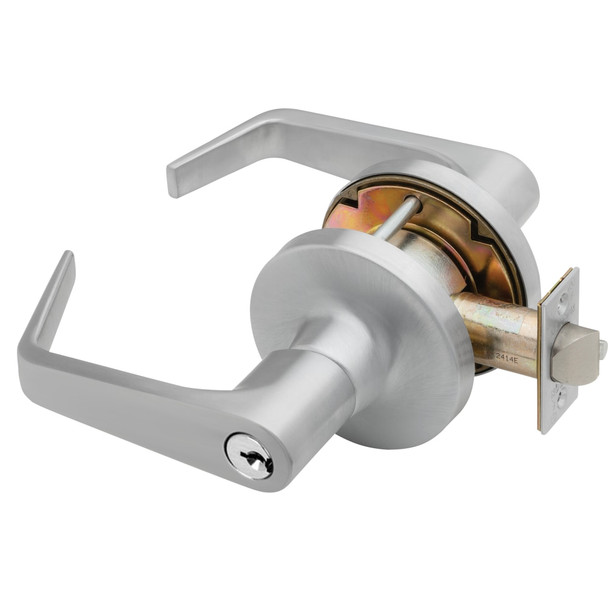

The Falcon T Series T511CP6D is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. This lock exceeds ANSI/BHMA Grade 1 testing requirements with a compression spring design, making it ideal for facilities that demand durability and reliability under constant use and heavy abuse.
The T511CP6D accepts any manufacturer's cylinder and features a removable cylinder for quick re-keying without disassembly, simplifying retrofits and maintenance. Preassembled trim and spindle reduce installation time. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, backset options, and cylinder configurations to match your door and security requirements.
Specifications
- Grade: ANSI/BHMA Grade 1
- Backset: 2-3/4 inch standard; 2-3/8 inch and 5 inch (with link) available
- Door Thickness: 1-3/4 inch to 2-1/8 inch standard; thin door adapter kit available
- Cylinder: Drilled 6-pin chambers, pinned in 5; 6 or 7-pin pinning available; removable design
- Keyway: G keyway standard on conventional cylinders; A keyway standard on interchangeable core cylinders
- Bolt Projection: 9/16 inch standard; 3/4 inch available
- Latch Faceplate: 2-1/4 inch x 1-1/8 inch standard with square corners; UL listed
- Strike: 4-7/8 inch x 1-1/4 inch ANSI strike with curved lip
- Material: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Roses: Heavy wrought brass or bronze over pressure cast inserts
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
- Interchangeable Core: Small format (SFIC) and large format options available
