Description

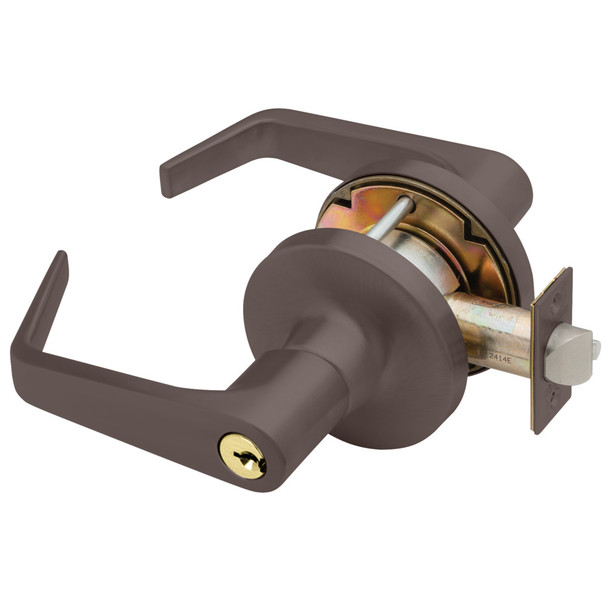

The Falcon T511PD D 613 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable security and durability at a solid price point for schools, offices, and facilities demanding long-term performance.
This lock accepts any manufacturer's cylinder and features a removable cylinder design for quick re-keying and easy retrofitting. Standard configuration fits 1-3/4" to 2-1/8" doors with 2-3/4" backset; adapters and alternatives are available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying options, handing verification, and installation support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit A30775-000-00 available)
- Backset: 2-3/4" standard; 2-3/8" available; 5" backset link (A22161-005-10) available
- Handing: Non-handed
- Cylinders: 6-pin chambers pinned in 5; 6-chamber or 7-pin available; removable for re-keying; interchangeable core (SFIC/large format) available
- Keyways: G keyway standard (conventional); A keyway standard (I/C core); optional keyways available
- Latch Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners (standard)
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Material: Brass or cold-formed steel (zinc-plated, dichromated); stainless steel springs; wrought brass or bronze roses; pressure-cast levers
- Keys: Two nickel silver keys furnished standard
