Description

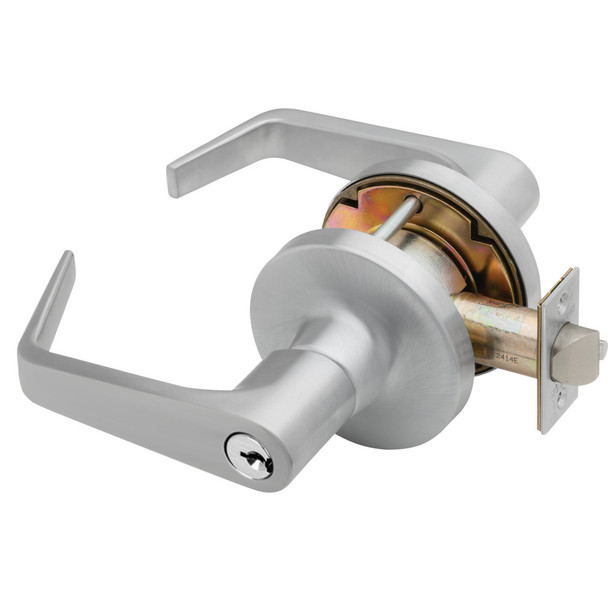

The Falcon T511PD D 626 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for schools, hospitals, government buildings, and other facilities demanding reliable security and durability at a competitive price.
This lock accepts standard manufacturer cylinders and features a removable cylinder assembly for quick re-keying without door modification, simplifying retrofits and maintenance. Brass and cold-formed steel components with zinc plating and dichromate finish resist rust; stainless steel springs ensure long-term reliability. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on handing, backset selection, keying options, and trim finishes to match your project requirements.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin door adapter kit available
- Backset: 2-3/4" standard; 2-3/8" available; 5" available with link
- Bolt Projection: 9/16" standard; 3/4" available
- Handing: Non-handed
- Cylinders: 6-pin standard (5 pinned); 6 and 7-pin options; removable for re-keying
- Keyway: "G" standard on conventional cylinders; "A" standard on I/C core cylinders
- Latch Faceplate: 2-1/4" x 1-1/8" standard with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Material: Brass and cold-formed steel, zinc plated and dichromated; stainless steel springs
- Trim: Heavy wrought brass or bronze roses; pressure-cast levers
- Keys Furnished: Two nickel silver keys standard
