Description

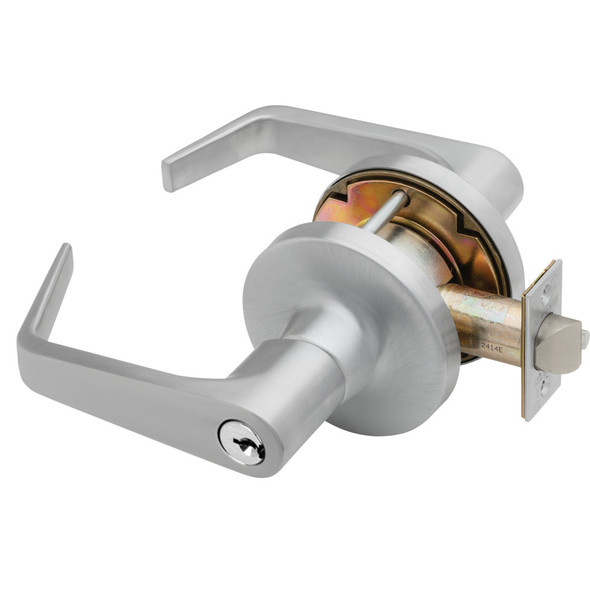

The Falcon T511PD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing, it features brass and cold-formed steel construction with zinc plating and stainless steel springs for lasting rust resistance and reliable operation in demanding environments.
Fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin door adapters and alternative backsets are available. The removable cylinder accepts industry-standard 6-pin chambers and ships with two nickel silver keys. As an authorized Falcon dealer, ED Locks provides expert configuration guidance and can help you select the right cylinder type, keyway, and trim finish for your application. Contact us at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" and 5" available
- Bolt Projection: 9/16" standard; 3/4" available
- Cylinder: 6-pin chambers, pinned in 5; 6, 7, and interchangeable core options available
- Keyway: "G" standard (conventional); "A" standard (I/C core)
- Rose Material: Heavy wrought brass or bronze
- Latch Faceplate: 2-1/4" x 1-1/8" standard with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keys Included: Two nickel silver keys
