Description

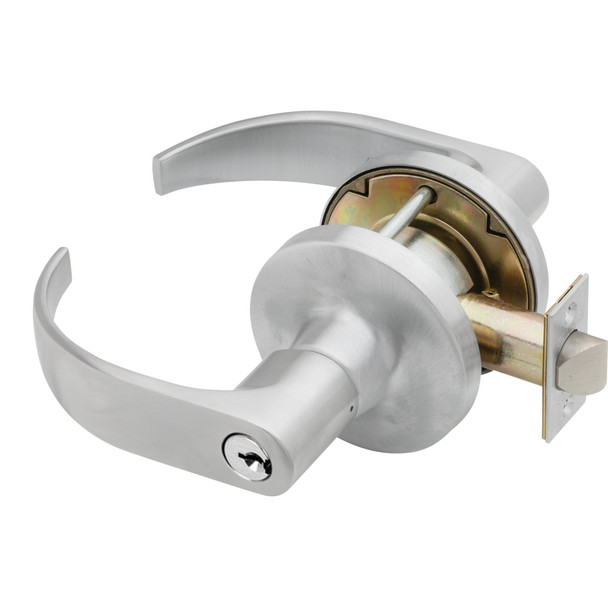

The Falcon T Series T511PD Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design accepts any manufacturer's cylinder with easy removable pin chambers for quick re-keying. Compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering solid security and durability at competitive pricing.
Standard 2-3/4 inch backset fits doors 1-3/4 inch to 2-1/8 inch thick. Thin door adapter kit available for thinner applications. Brass and zinc-plated steel construction with stainless steel springs resists rust. Includes two nickel silver keys and ANSI strike. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for cylinder options, keying specifications, and installation guidance.
Specifications
- Brand: Falcon
- Model: T511PD Q 626 43-005
- Grade: ANSI/BHMA Grade 1
- Lock Type: Cylindrical, Non-Handed
- Door Thickness: 1-3/4 inch to 2-1/8 inch standard
- Backset: 2-3/8 inch or 2-3/4 inch standard
- Bolt Projection: 9/16 inch standard
- Latch Faceplate: 2-1/4 inch x 1-1/8 inch with square corners
- Cylinders: 6-pin chambers, pinned in 5 (6-pin or 7-pin available)
- Keyway: G standard, A standard for interchangeable core
- Construction: Brass and cold-formed steel, zinc plated and dichromated
- Springs: Stainless steel main springs, phosphor bronze cylinder springs
- Trim: Heavy wrought brass or bronze roses with pressure cast levers
- Strike: 4-7/8 inch x 1-1/4 inch ANSI curved lip
- Keys: Two nickel silver keys furnished
- Interchangeable Core: Available in small format (SFIC) and large format
