Description

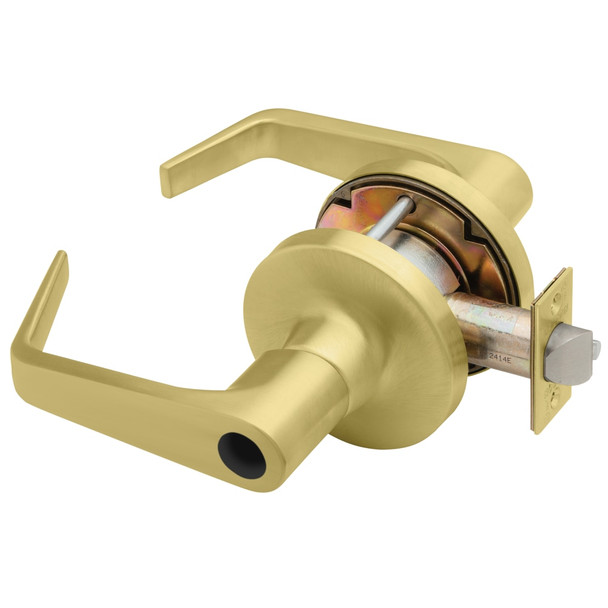

The Falcon T521LD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. With a compression spring design that exceeds ANSI/BHMA Grade 1 testing requirements, this lock delivers durability and security for doors subject to constant use. Non-handed design simplifies inventory and installation across your facility.
Standard for 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin door and alternate backset options are available. Removable cylinders allow quick re-keying without replacing the entire lock, making retrofits simple. All parts are zinc-plated and dichromated for rust resistance. For expert guidance on sizing, keying, and installation, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" also available)
- Cylinder: 6-pin chambers, pinned in 5 (6-pin pinning available at no cost)
- Keyway: G-keyway standard on conventional cylinders
- Bolt Projection: 9/16"
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Material: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Handing: Non-handed
- Cylinder Type: Removable for re-keying; interchangeable core options available
- Keys: Two nickel silver keys standard
