Description

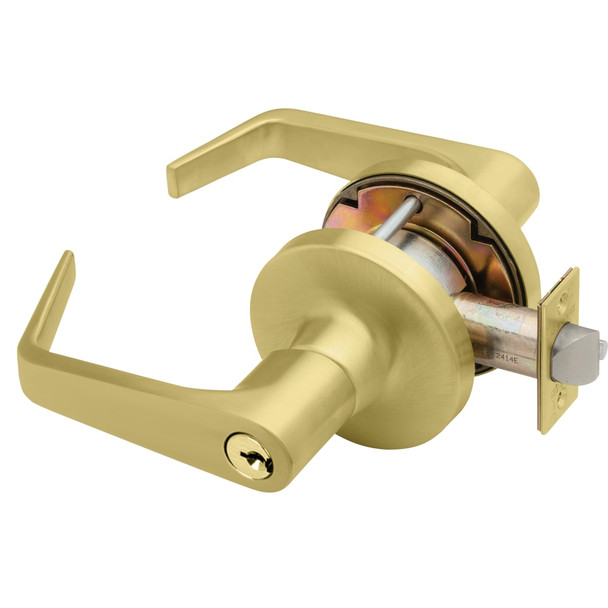

The Falcon T521PD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and high-abuse institutional applications. Its compression spring design exceeds ANSI/BHMA Grade 1 testing requirements, delivering durability and security in one solid unit. The removable cylinder accepts any manufacturer's pin configuration, making re-keying and retrofitting existing buildings fast and simple.
This lock fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset (2-3/8" also available). The non-handed design works on any door swing. All internal parts are brass or cold-formed steel with zinc plating and dichromate rust protection, while springs are stainless steel or phosphor bronze. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for specification confirmation, keying options, and expert installation guidance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin (5 pinned standard, 6 or 7-pin available)
- Keyway: G keyway standard
- Handing: Non-handed
- Material: Brass and cold-formed steel, zinc plated
- Keys Furnished: Two nickel silver
- Latch Faceplate: 2-1/4" x 1-1/8" square corners
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
