Description

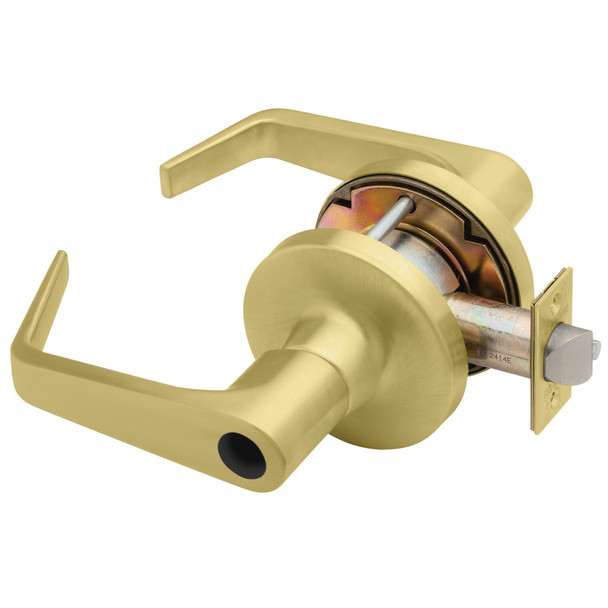

The Falcon T521LD is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional and commercial applications. Engineered with a compression spring to exceed ANSI/BHMA Grade 1 testing, this lock delivers reliability in demanding environments while supporting easy re-keying through removable cylinder design for simple retrofitting.
This lock fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset (2-3/8" also available). Brass and stainless steel construction resists corrosion. Accepts most manufacturers' cylinders in 5- or 6-pin configuration, with interchangeable core options. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for custom specifications, adapter kits, or keying guidance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard, 2-3/8" also available
- Bolt Projection: 9/16" standard
- Latch Faceplate: 2-1/4" x 1-1/8"
- Cylinder: 6-pin (pinned in 5 standard), 6-pin or 7-pin available
- Keyway: "G" standard (conventional cylinders), "A" standard (interchangeable core)
- Handing: Non-handed
- Material: Brass, cold-formed steel (zinc plated, dichromated), stainless steel springs
- Keys: Two nickel silver keys furnished
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
