Description

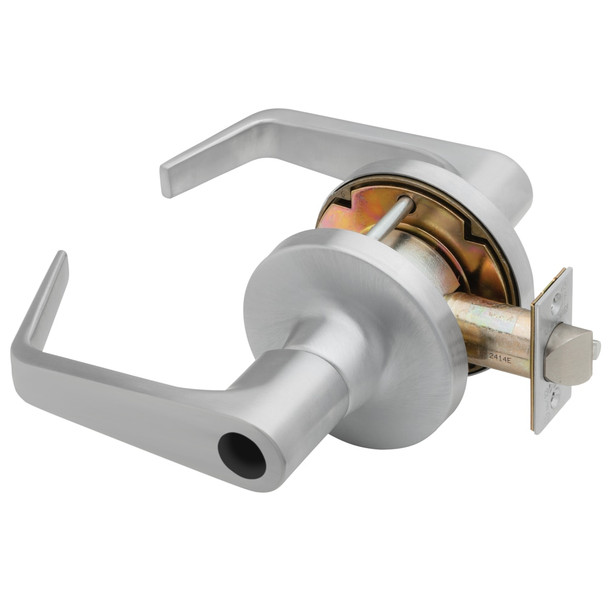

The Falcon T521LD D 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for facilities demanding durability and reliability at a solid price point.
This lock accepts any manufacturer's cylinder and features removable cylinders for quick re-keying and easy retrofitting. Preassembled trim and spindle assembly simplify installation. E.D. Locks stocks this Falcon product and offers expert support at sales@edlocks.com or 1-877-207-6067 to help you select the right backset, handing, and keyway for your door.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit A30775-000-00 available)
- Backset: 2-3/4" standard, 2-3/8" available, 5" with link A22161-005-10
- Handing: Non-handed
- Cylinders: 6-pin standard (5 pinned), 6-pin full and 7-pin options available
- Interchangeable Core: SFIC and large format available
- Keyways: "G" standard (conventional), "A" standard (I/C core)
- Bolt Projection: 9/16" standard, 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Strike: 4-7/8" x 1-1/4" ANSI curved lip
- Material: Brass or cold-formed steel components, zinc-plated and dichromated; stainless steel and phosphor bronze springs
- Keys: Two nickel silver keys furnished
