Description

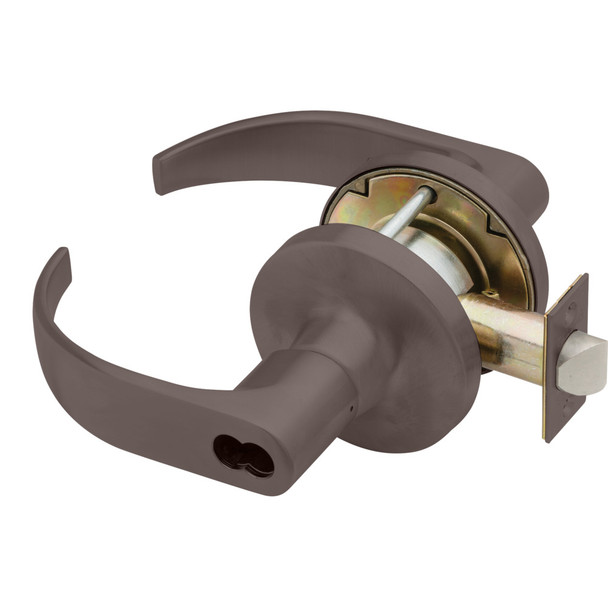

The Falcon T561BD Q 613 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and high-abuse institutional applications. Non-handed design with removable cylinder for easy re-keying makes retrofitting existing buildings straightforward. Brass and cold-formed steel construction with zinc-plated, dichromated finish and stainless steel springs exceed ANSI/BHMA Grade 1 testing requirements.
Standard door thickness is 1-3/4" to 2-1/8" with optional thin-door adapters available. Backset options include 2-3/4" standard or 2-3/8", with 5" backset available via link. Cylinder options range from conventional 6-pin or 7-pin to interchangeable core formats (SFIC and large format). For expert guidance on cylinder selection, keyway options, or door thickness specifications, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: ANSI/BHMA Grade 1
- Handing: Non-handed
- Door Thickness: 1-3/4" to 2-1/8" standard (thin-door adapter available)
- Backset: 2-3/4" standard, 2-3/8" available, 5" via link
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" (UL listed)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin standard (5 pinned), 6 or 7-pin available, removable for re-keying
- Cylinder Housing: Solid brass with phosphor bronze springs
- Body Construction: Brass or cold-formed steel, zinc-plated, dichromated
- Keyway: G keyway standard (conventional), A keyway standard (I/C core)
- Trim: Wrought brass or bronze roses, pressure-cast levers
- Keys: Two nickel silver keys furnished
