Description

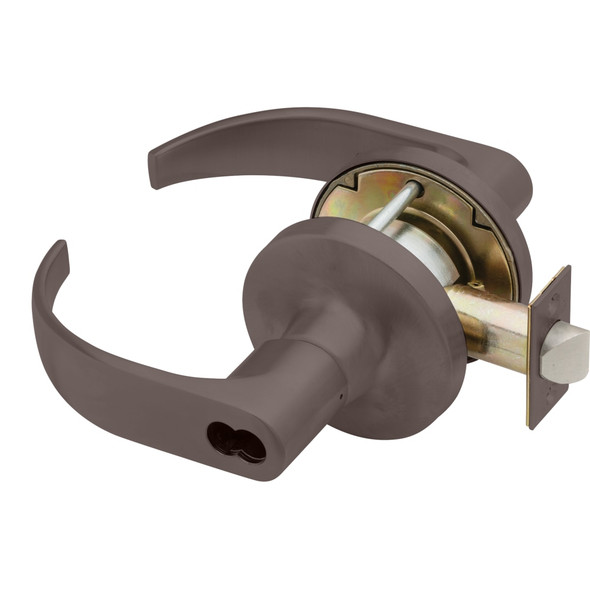

The Falcon T561BD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. It exceeds ANSI/BHMA Grade 1 testing with a compression spring design, brass and stainless steel construction, and removable cylinder for easy re-keying. Ideal for retrofits and demanding applications requiring solid security and durability.
Standard door thickness is 1-3/4" to 2-1/8" (thin door adapters available). Features a 2-3/4" backset, 6-pin cylinder with two nickel silver keys, and 9/16" bolt projection. Non-handed design simplifies installation. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, interchangeable core options, and custom backsets.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Cylinder: 6-pin, drilled and pinned in 5 (6 or 7-pin available)
- Keyway: G standard (A keyway for interchangeable core)
- Bolt Projection: 9/16" UL listed
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI
- Construction: Brass or cold formed steel, zinc plated and dichromated
- Springs: Stainless steel and phosphor bronze
- Keys: Two nickel silver keys furnished
- Handing: Non-handed
