Description

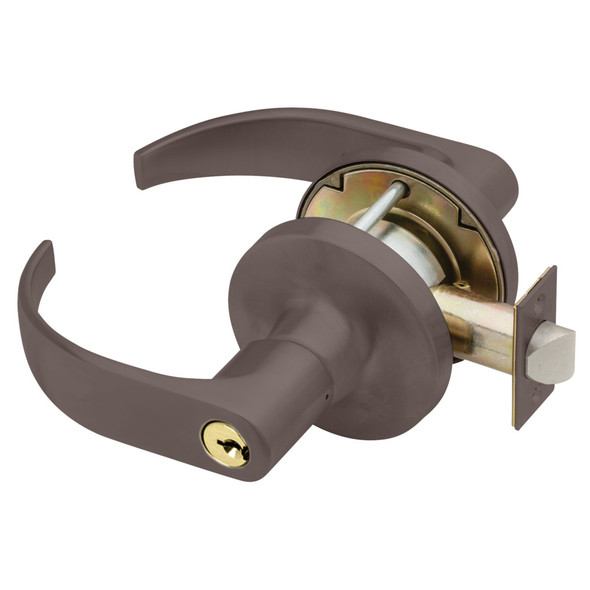

The Falcon T Series T561CP6D is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial applications. Its compression spring design exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for buildings requiring maximum durability and security. Non-handed design simplifies inventory and installation across diverse door configurations.
This lock fits standard doors 1-3/4" to 2-1/8" thick with 2-3/4" backset; thin door and alternate backset kits are available. The removable cylinder accepts industry-standard pinning and supports interchangeable core options for easy rekeying without removing the lock body. As an authorized Falcon dealer, E.D. Locks provides expert support at sales@edlocks.com or 1-877-207-6067 to ensure proper specification and installation for your application.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" standard
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard
- Material: Brass and cold-formed steel, zinc-plated, dichromated
- Springs: Stainless steel
- Keys Furnished: Two nickel silver keys standard
- Strike: 4-7/8" x 1-1/4" ANSI strike
- Handing: Non-handed
- Interchangeable Core: SFIC and large format available
