Description

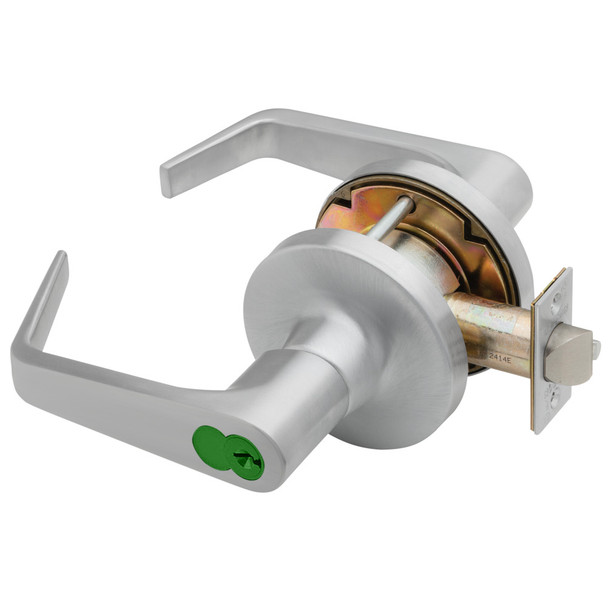

The Falcon T561HD D 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable security and durability in demanding environments where standard locks fall short.
This lock accepts any manufacturer's cylinder and features a removable cylinder design for quick, easy re-keying without replacing the entire lock body, making retrofits simple and cost-effective. Standard door thickness accommodation is 1-3/4" to 2-1/8", with adapter kits available for thinner doors. As an authorized Falcon dealer, E.D. Locks offers expert guidance on backset options, keying configurations, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized support and free shipping on orders over $450.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (adapters available for thinner doors)
- Backset: 2-3/4" standard; 2-3/8" and 5" (with link) also available
- Cylinder: 6-pin chambers, pinned in 5 (6-pin or 7-pin available); removable for re-keying
- Cylinder Housing: Solid brass with phosphor bronze springs
- Keyways: "G" standard on conventional cylinders; "A" standard on I/C core cylinders
- Interchangeable Core: Available in small format (SFIC) and large format
- Mechanism: Brass or cold formed steel parts, zinc plated and dichromated; stainless steel springs
- Latch Bolt: 9/16" projection standard (3/4" projection available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip (ANSI A115.2 compliant)
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
- Attachment: Through-bolted with (2) 10-32 screws
