Description

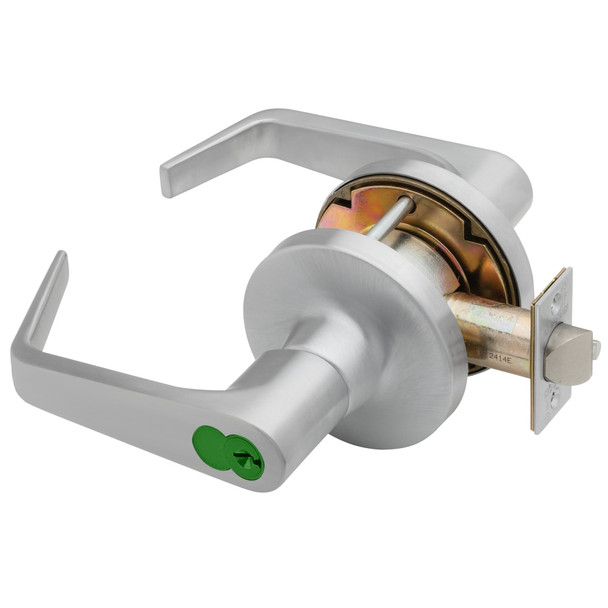

The Falcon T381HD D 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for schools, hospitals, and government buildings where durability and security matter. The removable cylinder design enables quick re-keying and easy retrofitting without replacing the entire lock.
This lock fits standard door thicknesses of 1-3/4" to 2-1/8" with a 2-3/4" backset; adapters and alternative backsets are available. Brass and stainless steel construction with zinc plating ensures long-term rust resistance. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on cylinder options, keyways, and installation support as an authorized Falcon dealer.
Specifications
- Brand: Falcon
- Model: T381HD D 626
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" and 5" available)
- Bolt Projection: 9/16" standard (3/4" available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Cylinder: 6-pin chambers, pinned in 5 (6 or 7-pin available)
- Keyway: G keyway standard (A keyway on I/C cores)
- Keys Furnished: Two nickel silver keys
- Material: Brass and cold formed steel, zinc plated and dichromated
- Springs: Stainless steel
- Handing: Non-handed
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Options: Interchangeable core (SFIC and large format), thin door adapters, alternative keyways
