Description

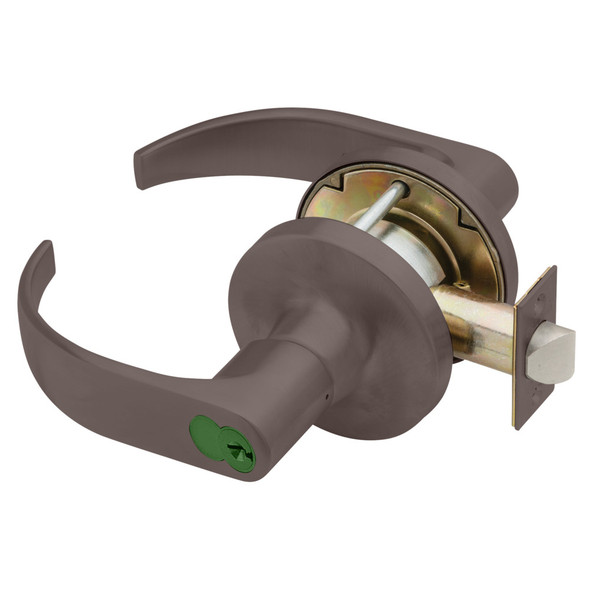

The Falcon T561HD Q 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with compression springs that exceed ANSI/BHMA Grade 1 testing requirements, this lock delivers reliable security and durability at a solid price point for any demanding environment.
The T561HD accepts universal cylinders and features a removable cylinder design for quick re-keying and easy retrofitting. Standard door thickness accommodation is 1-3/4" to 2-1/8", with adapter kits available for thinner doors. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration, keying options, and authorized dealer support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (adapter kit available for thinner doors)
- Backset: 2-3/4" standard, 2-3/8" also available, 5" with link kit
- Bolt Projection: 9/16" standard (3/4" optional)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Mechanism: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Cylinders: 6-pin chambers pinned in 5 (6-pin or 7-pin available); removable for re-keying; interchangeable core options (SFIC and large format)
- Keyway: "G" standard on conventional cylinders, "A" on I/C core cylinders
- Keys: Two nickel silver keys furnished standard
- Handing: Non-handed
- Trim: Heavy wrought brass or bronze roses with pressure cast inserts; pressure cast levers
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Screws: Combination screws for wood or metal doors
