Description

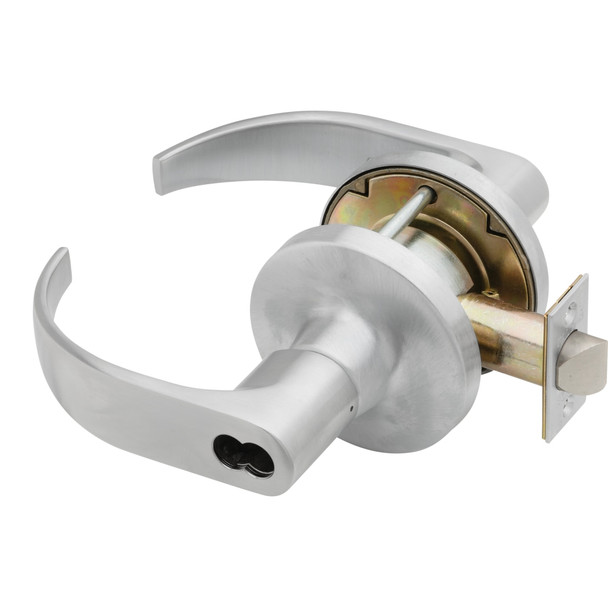

The Falcon T Series T561JD-SCH Q 626 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this non-handed lock delivers reliable security and durability at a solid price point for schools, hospitals, government facilities, and other demanding environments.
This lock accepts any manufacturer's cylinder and features a removable cylinder design for quick, tool-free re-keying and easy building retrofit. Standard configuration includes 1-3/4" to 2-1/8" door thickness and 2-3/8" backset; thin door adapters and alternative backsets are available. As an authorized Falcon dealer, E.D. Locks offers expert guidance on handing, keying, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for sizing assistance or to discuss interchangeable core options.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit A30775-000-00 available)
- Backset: 2-3/8" standard (2-3/4" available; 5" backset link A22161-005-10 available)
- Handing: Non-handed
- Cylinder: Drilled with 6-pin chambers, pinned in 5 (6-pin or 7-pin pinning available); removable for re-keying
- Keyways: G keyway standard on conventional cylinders; A keyway standard on I/C core cylinders
- Cylinder Materials: Solid brass housings and plugs; phosphor bronze springs; two nickel silver keys standard
- Mechanism: Brass or cold-formed steel parts, zinc-plated and dichromated for rust resistance; stainless steel springs
- Attachment: Through-bolted with (2) 10-32 screws
- Latch: 9/16" bolt projection, UL listed; 2-1/4" x 1-1/8" faceplate with square corners standard
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip per ANSI A115.2
- Trim: Heavy wrought brass or bronze roses over pressure-cast inserts; pressure-cast levers
- Interchangeable Core: Available in small format (SFIC) and large format
