Description

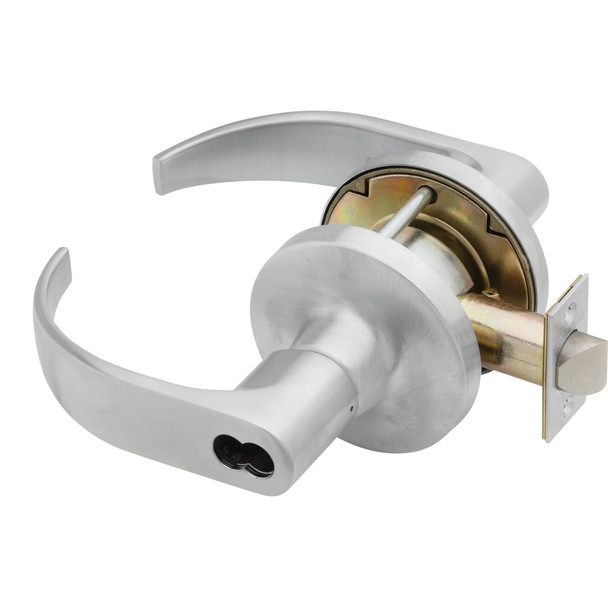

The Falcon T Series is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. It exceeds ANSI/BHMA Grade 1 testing requirements thanks to its compression spring construction, making it ideal for schools, hospitals, government buildings, and facilities that demand reliable security and durability.
This lock accepts standard manufacturer cylinders and features removable cylinders for quick, field-level re-keying without removing the lock body, simplifying retrofits and re-keying operations. Available in multiple backsets and door thicknesses with optional thin-door adapters. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for custom configurations, keying assistance, and authorized dealer support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" available; 5" with link)
- Bolt Projection: 9/16" standard (3/4" optional)
- Cylinder Chambers: 6-pin drilled, pinned in 5 (6 or 7-pin available)
- Keyway: G (conventional) or A (interchangeable core)
- Latch Faceplate: 2-1/4" x 1-1/8" standard
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Construction: Brass/cold-formed steel, zinc-plated; stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys standard
