Description

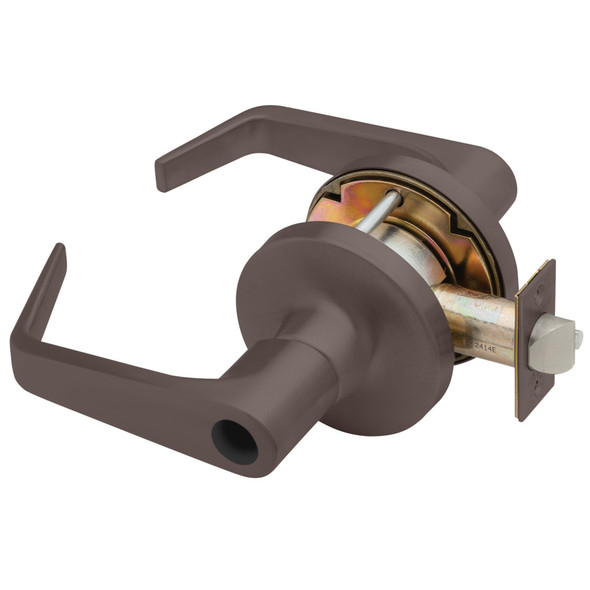

The Falcon T561LD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with compression springs that exceed ANSI/BHMA Grade 1 testing requirements, this lock delivers reliable security and durability at an affordable price point for facilities requiring robust door hardware.
The T561LD accepts any manufacturer's cylinder and features a removable design for quick, easy re-keying and simple retrofitting. Fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset (2-3/8" available). Thin door adapters and extended backset options are available. As an authorized Falcon dealer, E.D. Locks provides expert guidance on specifications, keying, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin door adapter available
- Backset: 2-3/4" standard; 2-3/8" available; 5" available with link
- Bolt Projection: 9/16" standard; 3/4" available
- Cylinder: 6-pin chambers, pinned in 5; 6-pin or 7-pin pinning available; removable for re-keying
- Keyway: "G" standard on conventional cylinders; "A" standard on I/C core cylinders
- Interchangeable Core: Small format (SFIC) and large format available
- Material: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
