Description

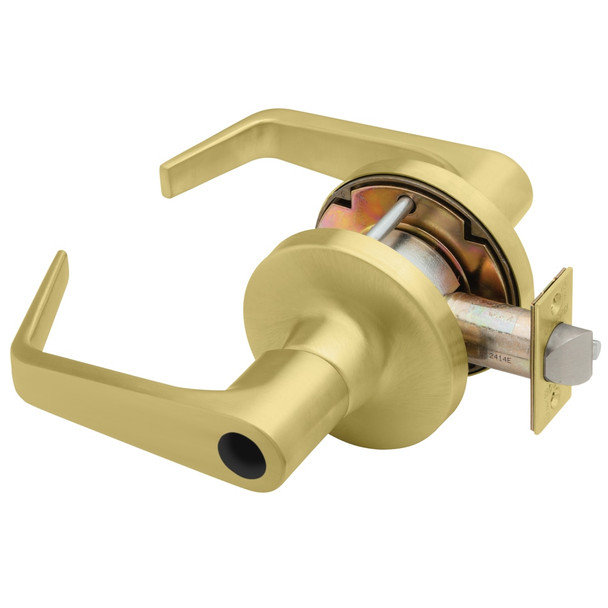

The Falcon T561LD D 606 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. Non-handed design with removable cylinder for easy re-keying. Compression spring construction exceeds ANSI/BHMA Grade 1 testing. Ideal for retrofitting existing buildings quickly and cost-effectively.
Fits standard door thickness 1-3/4" to 2-1/8" with 2-3/4" backset; thin door and extended backset options available. Accepts most manufacturer cylinders. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying guidance, compatibility questions, and expert installation support as an authorized Falcon dealer.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: 6-pin drilled, pinned in 5 (6-pin or 7-pin available)
- Keyway: G keyway standard on conventional cylinders
- Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" standard
- Strike: 4-7/8" x 1-1/4" ANSI strike
- Material: Brass, cold formed steel (zinc plated, dichromated); stainless steel springs
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
