Description

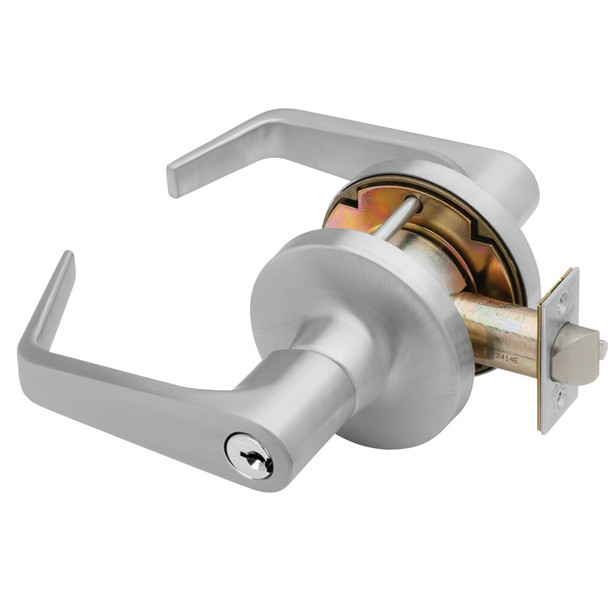

The Falcon T561P7D is a heavy-duty Grade 1 cylindrical lock engineered for high-traffic institutional and commercial doors. It exceeds ANSI/BHMA Grade 1 testing with a compression spring design, brass and stainless steel construction, and removable cylinder for easy rekeying. Ideal for retrofits and buildings requiring reliable, abuse-resistant hardware.
This lock fits standard 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin door adapters and alternative backsets are available. Preassembled for quick installation with non-handed design and interchangeable core options. As an authorized Falcon dealer, E.D. Locks provides expert guidance on cylinder pinning, keyways, and custom configurations. Contact sales@edlocks.com or 1-877-207-6067 for assistance selecting the right setup for your application.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Bolt Projection: 9/16" standard (3/4" available)
- Cylinders: 6-pin standard (5 pins installed, 6 or 7-pin available)
- Keyway: "G" standard ("A" standard on interchangeable core)
- Cylinder Housing: Solid brass with phosphor bronze springs
- Trim Material: Heavy wrought brass or bronze roses with pressure cast levers
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Construction: Brass and cold formed steel, zinc plated and dichromated; stainless steel springs
- Handing: Non-handed
- Keys Furnished: Two nickel silver keys standard
- Installation: Through-bolted with (2) 10-32 screws, preassembled
