Description

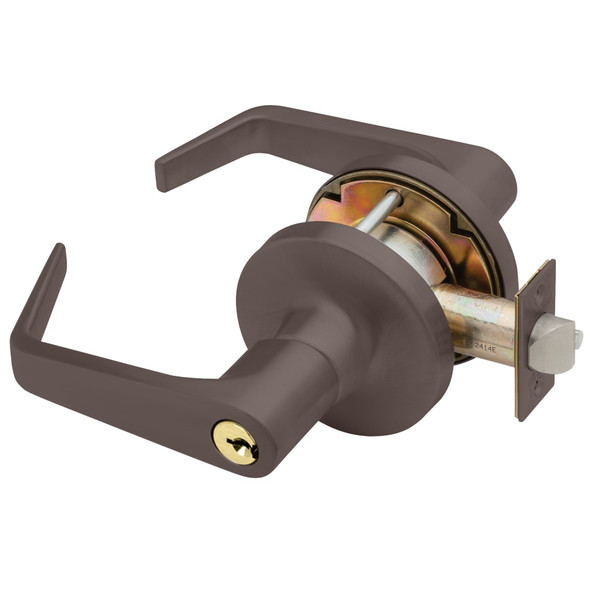

The Falcon T Series T561PD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliable security and durability for demanding environments where solid performance and value matter.
This lock accepts any manufacturer's cylinder and features removable cylinders for quick, easy re-keying and building retrofits. Standard for 1-3/4" to 2-1/8" doors with 2-3/4" backset; thin door and alternate backset kits available. Contact E.D. Locks, an authorized Falcon dealer, at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility, keying options, and interchangeable core availability.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter kit available)
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Bolt Projection: 9/16" standard (3/4" option available)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners standard
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Cylinder: 6-pin chambers, pinned in 5 standard (6 or 7-pin options available)
- Keyway: "G" standard on conventional cylinders; "A" standard on I/C core cylinders
- Cylinder Housing: Solid brass with phosphor bronze springs
- Trim: Heavy wrought brass or bronze roses; pressure cast levers
- Mechanism: Brass or cold formed steel, zinc plated and dichromated; stainless steel springs
- Handing: Non-handed
- Keys Furnished: Two nickel silver keys standard
- Interchangeable Core: Available in small format (SFIC) and large format
