Description

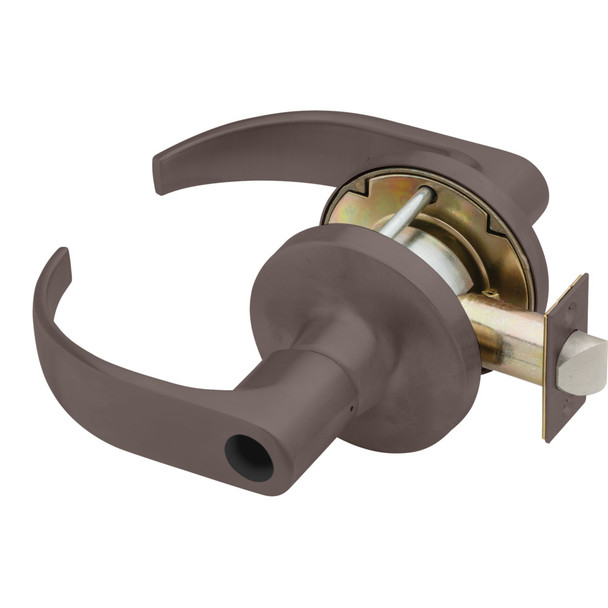

The Falcon T571LD Q 613 is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and high-abuse institutional applications. Built with a compression spring that exceeds ANSI/BHMA Grade 1 testing requirements, this lock delivers durability and reliability in demanding environments where security and longevity matter most.
This lock accepts any manufacturer's cylinder and features removable cylinder assemblies for quick, easy re-keying and simple retrofitting. Fits standard door thicknesses of 1-3/4" to 2-1/8" with optional adapters available. E.D. Locks is an authorized Falcon dealer offering expert guidance on installation, keying options, and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" and 5" options available)
- Latch Projection: 9/16" standard (3/4" optional)
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Cylinders: 6-pin standard (5 pinned), 6 or 7-pin available; removable for re-keying
- Keyways: G keyway standard on conventional cylinders; A keyway standard on interchangeable core
- Interchangeable Core: Available in small format (SFIC) and large format
- Construction: Brass or cold formed steel with zinc plating and dichromate finish; stainless steel springs
- Strike: 4-7/8" x 1-1/4" ANSI strike with curved lip
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
