Description

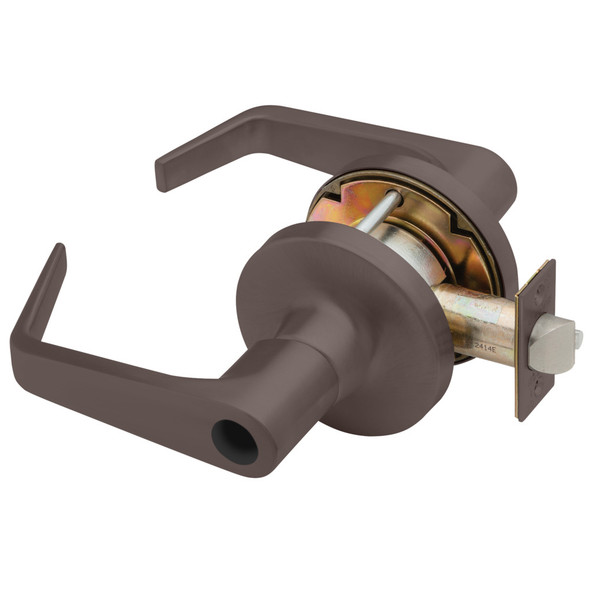

The Falcon T Series T571LD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Non-handed design accepts any manufacturer's removable cylinder, enabling quick re-keying and simple retrofitting. Compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements.
Standard for 1-3/4" to 2-1/8" door thickness with 2-3/4" backset; thin door adapters and alternative backsets available. Brass and cold-formed steel construction with zinc plating and stainless steel springs resist corrosion. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, compatibility verification, and expert installation guidance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16"
- Latch Faceplate: 2-1/4" x 1-1/8"
- Cylinder: 6-pin, removable, drilled standard (5-pin)
- Keyway: G keyway standard
- Material: Brass and cold-formed steel, zinc plated
- Springs: Stainless steel
- Keys Furnished: Two nickel silver keys
- Attachment: Threaded mounting nuts, through-bolted
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
