Description

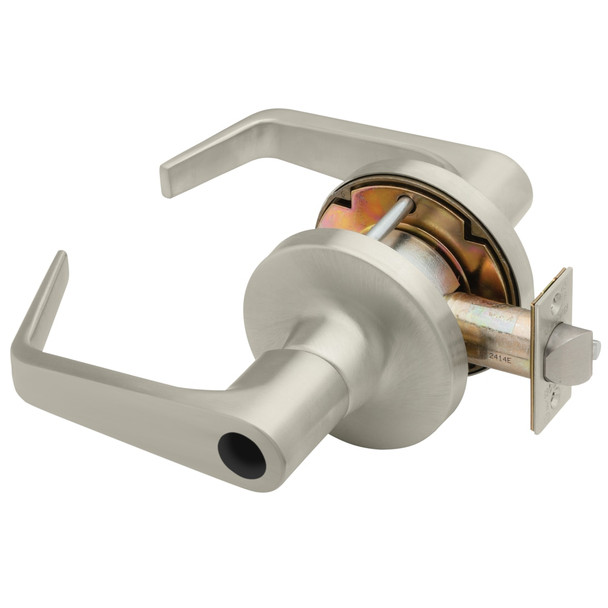

The Falcon T Series is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and heavy-abuse institutional applications. It exceeds ANSI/BHMA Grade 1 testing with a compression spring design, brass and steel construction with zinc plating, and stainless steel springs. Non-handed design and removable cylinders enable quick re-keying and easy retrofit into existing buildings.
Compatible with standard 1-3/4" to 2-1/8" doors and 2-3/4" backset (2-3/8" optional). Comes pinned with 6 chambers (5-pin standard), 9/16" bolt projection, and ANSI strike. Our authorized dealer team at E.D. Locks can help select adapters, backsets, keyways, and interchangeable core options. Contact sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8" available)
- Bolt Projection: 9/16" UL listed
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinder: 6-pin chambers, pinned in 5 (6-pin or 7-pin available)
- Keyway: G (standard), A (interchangeable core)
- Construction: Brass/cold-formed steel, zinc plated, stainless steel springs
- Trim: Heavy wrought brass/bronze roses, pressure-cast levers
- Handing: Non-handed
- Keys: Two nickel silver keys standard
