Description

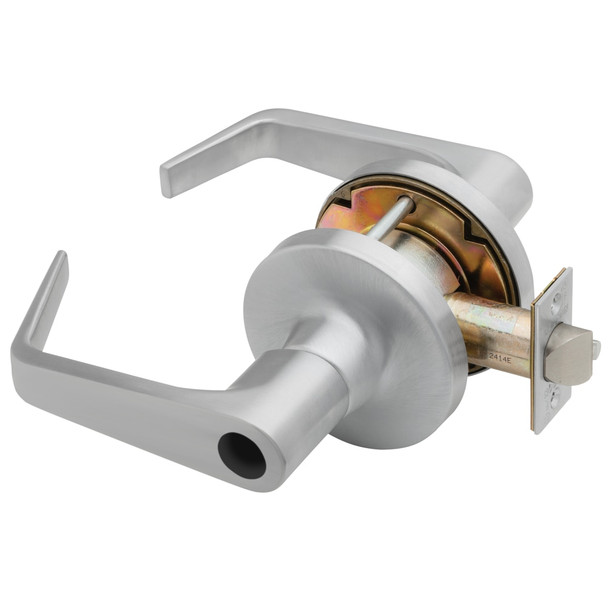

The Falcon T581LD D 626 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic and high-abuse institutional applications. Its compression spring construction exceeds ANSI/BHMA Grade 1 testing requirements, making it ideal for facilities needing reliable, long-lasting security hardware that performs under demanding use.
This lock accepts any manufacturer's cylinder and features removable cylinder design for quick re-keying and easy retrofitting. Standard door thickness accommodation is 1-3/4" to 2-1/8", with adapters available for thinner doors. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for specification confirmation, handing options, and keying assistance as an authorized Falcon dealer.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/8" to 2-1/8" standard (thin door adapter available)
- Backset: 2-3/4" standard (2-3/8" available; 5" with link)
- Bolt Projection: 9/16" standard (3/4" available)
- Cylinder: 6-pin chambers, pinned in 5 (6-pin or 7-pin available)
- Keyway: G keyway standard (A keyway on I/C core)
- Cylinder Housing: Solid brass, removable for re-keying
- Mechanism: Brass or cold-formed steel, zinc plated, stainless steel springs
- Latch Faceplate: 2-1/4" x 1-1/8" standard (2-3/4" x 1-1/4" available)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keys Furnished: Two nickel silver keys standard
- Interchangeable Core: SFIC and large format available
