Description

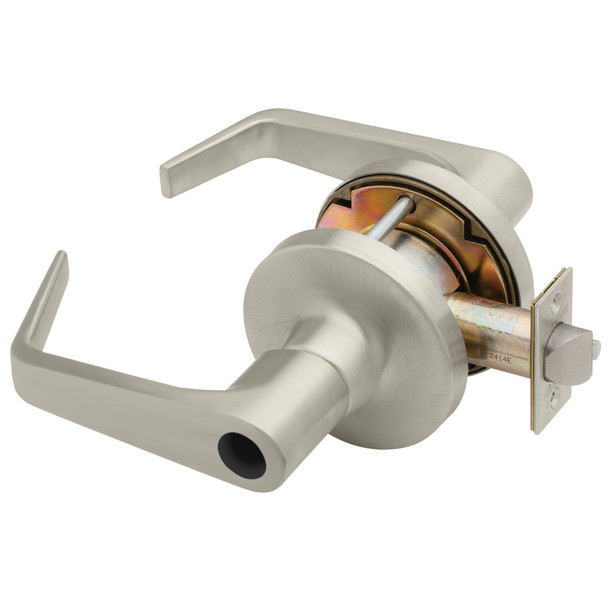

The Falcon T581LD is an extra heavy-duty Grade 1 cylindrical lock engineered for high-traffic and heavy-abuse institutional applications. Built with compression springs and brass/stainless steel components, it exceeds ANSI/BHMA Grade 1 testing requirements while delivering solid performance at a competitive price. Non-handed design suits left or right swing doors.
The lock accepts standard manufacturer cylinders with easy removable design for quick re-keying and retrofitting. Preassembled trim and spindle through-bolt over the chassis for simple installation. Ships with two nickel silver keys standard. For sizing questions, compatibility with your door thickness, or to discuss keying options, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4 inches to 2-1/8 inches standard
- Backset: 2-3/4 inches standard; 2-3/8 inches and 5 inches also available
- Bolt Projection: 9/16 inches standard
- Cylinder: 6-pin chambers, pinned in 5; 6 or 7-pin pinning and interchangeable core options available
- Keyway: G keyway standard on conventional cylinders; A keyway standard on I/C core cylinders
- Trim: Heavy wrought brass or bronze roses with pressure cast levers
- Latch Faceplate: 2-1/4 inches x 1-1/8 inches with square corners
- Strike: 4-7/8 inches x 1-1/4 inches ANSI strike with curved lip
- Material: Brass or cold formed steel with zinc plating and dichromate finish; stainless steel springs
- Handing: Non-handed
- Keys Included: Two nickel silver keys
