Description

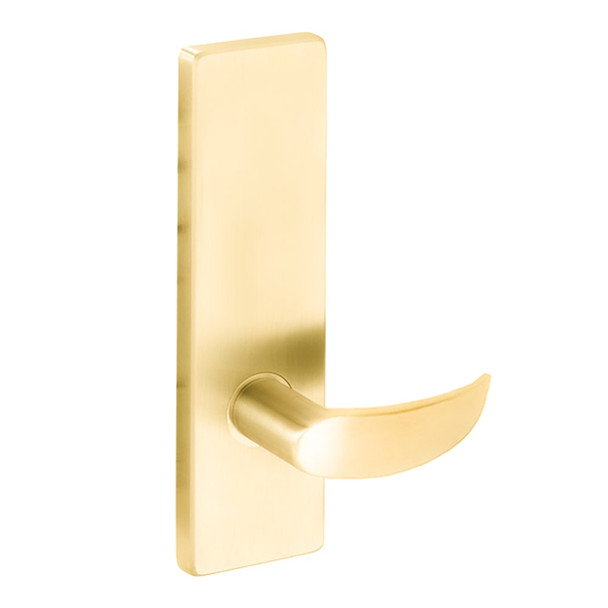

The Falcon TP55E A 605 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. It delivers dependable security and withstands constant use without fail. The interchangeable core (I/C) design enables quick, easy re-keying in the field, making it ideal for properties with frequent access changes or multi-tenant buildings.
This lock is compatible with standard SFIC interchangeable core products and accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a UL 3-hour A label. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying, handing options, and electrified configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for fast quotes and technical support.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin I/C
- Keyways: "G" standard (standard cylinder), "A" standard (I/C cylinder)
- Handing: Right hand standard; left hand optional, reversible
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1
- Includes: Two nickel silver keys
