Description

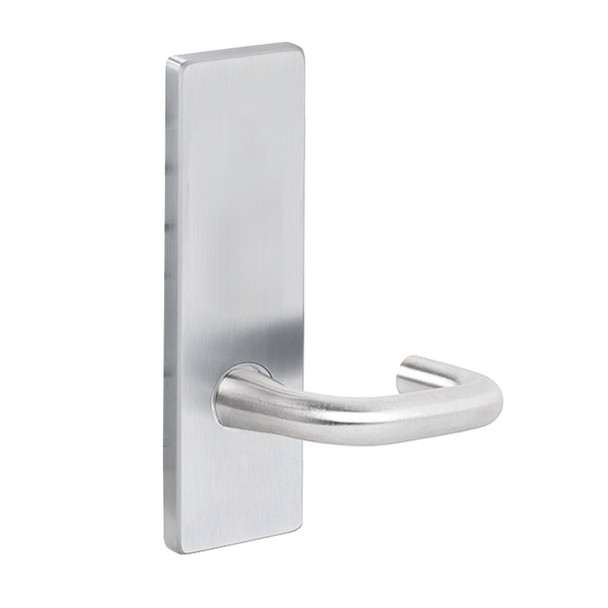

The Falcon TP55E S 626 is a commercial mortise lock designed for offices, hospitals, educational facilities, and other high-traffic environments. This MA Series lock combines security with durability, featuring an interchangeable core for quick re-keying and easy maintenance in demanding applications where reliability is essential.
The TP55E S 626 accommodates standard door thicknesses of 1-3/8" to 2-1/2" and is compatible with SFIC products. As an authorized Falcon dealer, E.D. Locks provides expert guidance on installation, keying options, and electrified configurations. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support and specifications.
Specifications
- Brand: Falcon
- Model: TP55E S 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin available (6 or 7-pin for interchangeable core)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Includes: Two nickel silver keys standard
