Description
The Yale 8800 Series mortise lock is engineered for commercial applications demanding uncompromising strength and durability. This Grade 1 ANSI/BHMA certified lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and field-reversible latchbolt design. Perfect for high-traffic doors in offices, retail, hospitality, and institutional settings.

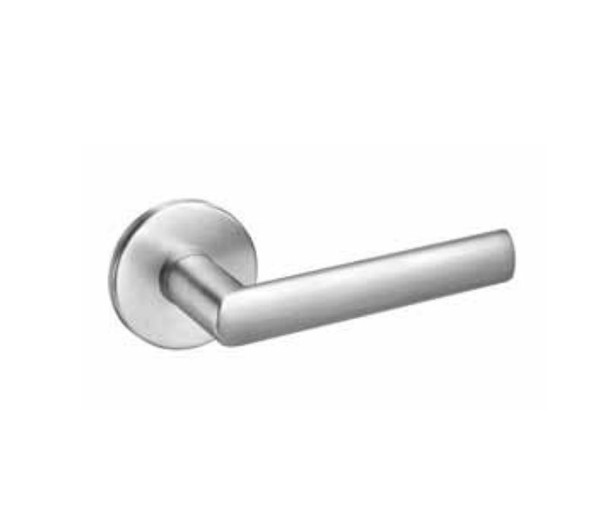

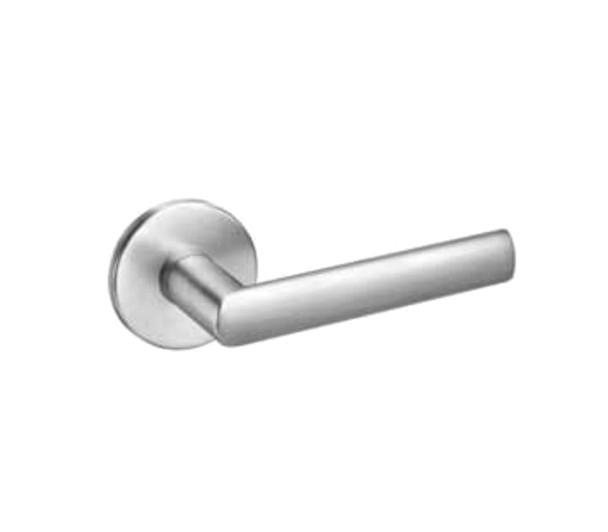

The VIR8808-2FL trim pack fits standard 1-3/4" doors and accommodates up to 3-1/4" thick doors by special order. Installation is streamlined with quick lever handing, standard nonhanded strike, and adjustable bevel front. As an authorized Yale dealer, E.D. Locks provides expert specification guidance and support. Contact sales@edlocks.com or call 1-877-207-6067 for keying options, finish selection, and compatibility questions.
Specifications
- Brand: Yale/Accentra
- Series: 8800 Series Mortise Lock
- Certification: ANSI/BHMA A156.13 Grade 1, UL/cUL fire rated up to 3 hours
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, up to 3-1/4" to order
- Mechanism: Stainless steel
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard, reversible
- Front: Bevel front, free-floating 1/8" adjustment
- Finishes: 17 available
- Warranty: 10 year mechanical
