Description

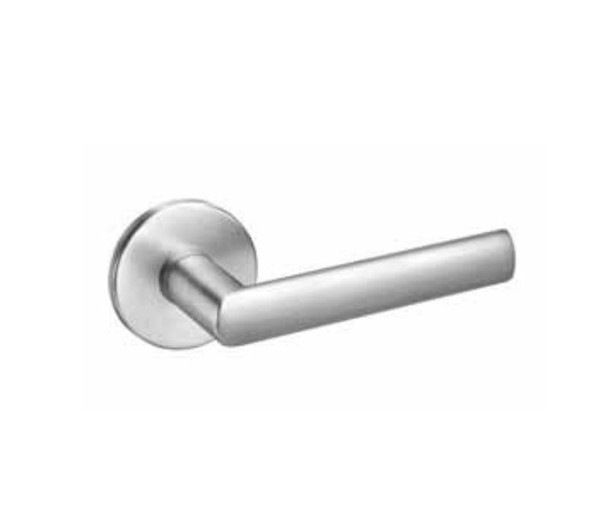

The Yale 8800 Series VIR8824FL mortise lock trim pack delivers commercial-grade security for offices, schools, hospitals and high-traffic facilities. Built with reinforced stainless steel deadbolts and heavy-duty, vandal-resistant trim, this ANSI/BHMA Grade 1 certified lock handles demanding daily use while meeting UL/cUL fire-rating standards up to 3 hours.
The VIR8824FL fits standard 1-3/4" doors (up to 3-1/4" available), features a 2-3/4" backrest, field-reversible handing, and includes a nonhanded strike and two brass keys. As an authorized Yale dealer, E.D. Locks provides expert guidance on handing, keying and compatibility. Contact sales@edlocks.com or 1-877-207-6067 for questions.
Specifications
- Certification: ANSI/BHMA A156.13, Series 1000, Grade 1; UL/cUL fire-rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available to order)
- Front: Bevel front, free-floating (flat to 1/8" standard bevel)
- Cylinders: Brass, 6-pin keyed-random with two keys standard (7-pin available)
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard (other lengths to special order); all reversible
- Finishes: 17 available finishes
- Warranty: 10 year mechanical
