Description

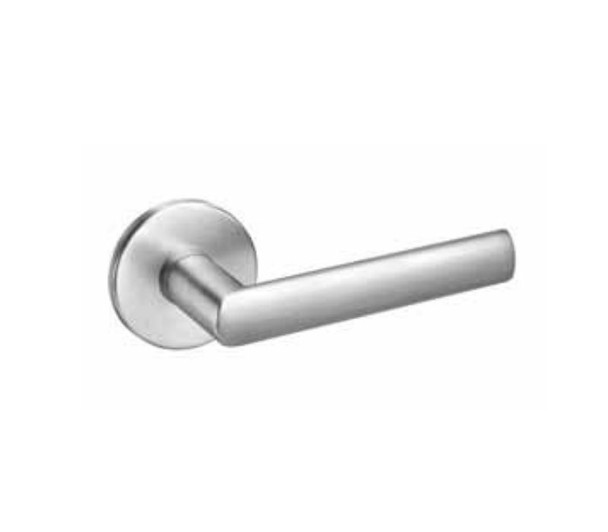

The Yale 8800 Series VIR8830-2FL is a commercial-grade mortise lock trim pack built for demanding commercial applications requiring uncompromising strength and durability. This ANSI/BHMA Grade 1 certified lock features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and quick lever handing to simplify installation on standard 1-3/4" doors.
The lock is field reversible with a 3/4" stainless steel latchbolt, standard 2-3/4" backset, and includes a curved lip strike and two keys. It accommodates doors up to 3-1/4" thick and is available in 17 finishes. For compatibility verification, finish selection, or keying assistance, contact E.D. Locks' expert team at sales@edlocks.com or 1-877-207-6067 as an authorized Yale dealer.
Specifications
- ANSI/BHMA A156.13 Series 1000, Operational Grade 1
- UL/cUL fire rated up to 3 hours
- Windstorm certified
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard, to 3-1/4" available
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- Available in 17 finishes
- 10-year mechanical warranty
