Description

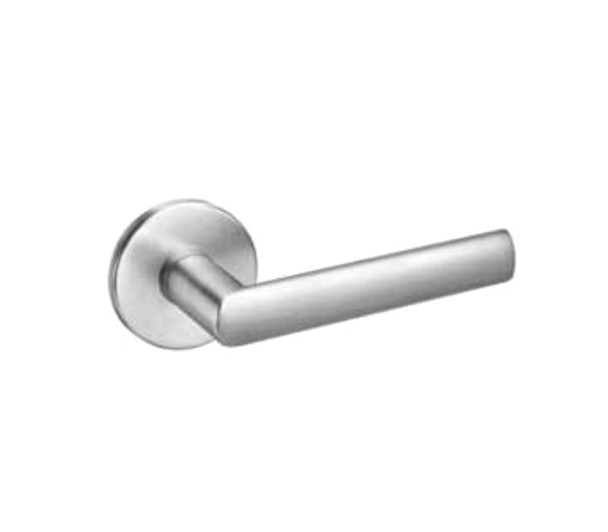

The Yale 8867FL 626 Trim Pack is a Grade 1 mortise lock designed for commercial doors requiring maximum security and durability. Built with reinforced stainless steel components and heavy-duty vandal-resistant trim, it solves the need for reliable access control in high-traffic commercial environments where strength and longevity matter.
This trim pack fits standard 1-3/4" doors and features field-reversible handing for flexible installation. The 2-3/4" backset and 3/4" stainless steel latchbolt meet ANSI/BHMA A156.13 Grade 1 standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for finish selection, keying options, and expert installation guidance.
Specifications
- Certification: ANSI/BHMA A156.13 Grade 1, UL/cUL fire rated to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard, up to 3-1/4" available to order
- Cylinders: Brass, 6-pin keyed-random with two keys, 7-pin available
- Reversibility: Field reversible handing
- Strike: 1-1/4" curved lip for 1-3/4" door standard
- Finishes: 17 available options
- Warranty: 10 year mechanical
