Description

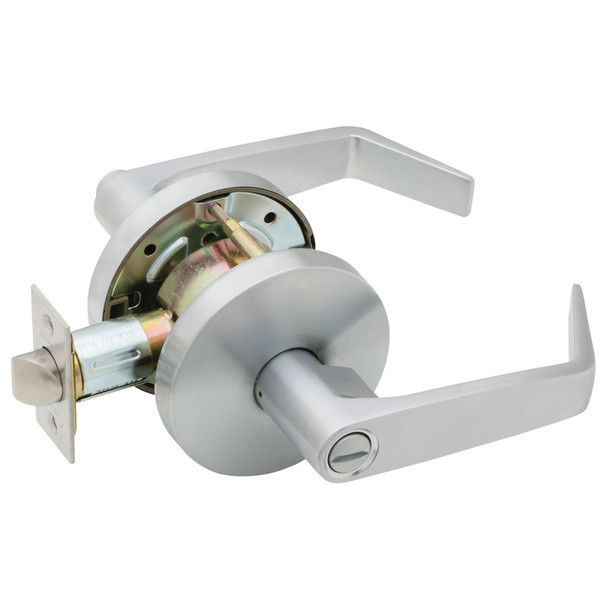

The Falcon W301S is an affordable cylindrical lock designed for government, retail, industrial, and multi-family buildings with moderate traffic. It solves the need for reliable, cost-effective security on standard commercial doors while supporting flexible keying options including master keying across standard and Schlage C keyways.
This lock fits doors 1-3/8" to 1-3/4" thick and accepts 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent. The 626 finish (satin chrome) pairs with interchangeable lever or knob styles and two rose sizes. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying assistance, master key configuration, or application advice from our expert team.
Specifications
- Door Thickness: 1-3/8" to 1-3/4"
- Backset: 2-3/4" standard (2-3/8" available)
- Cylinder: 6-pin, removable and rekeyadble
- Latch Bolt: 1/2" projection, stainless steel
- Latch Face: 1-1/8" x 2-1/4"
- Cylinder Material: Solid brass housing and plug
- Mechanism: Brass or cold-formed steel, zinc plated, stainless steel springs
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Finish: 626 (Satin Chrome)
- Keyways: G (standard), A (interchangeable core), Schlage C optional
- Handing: Non-handed
