Description

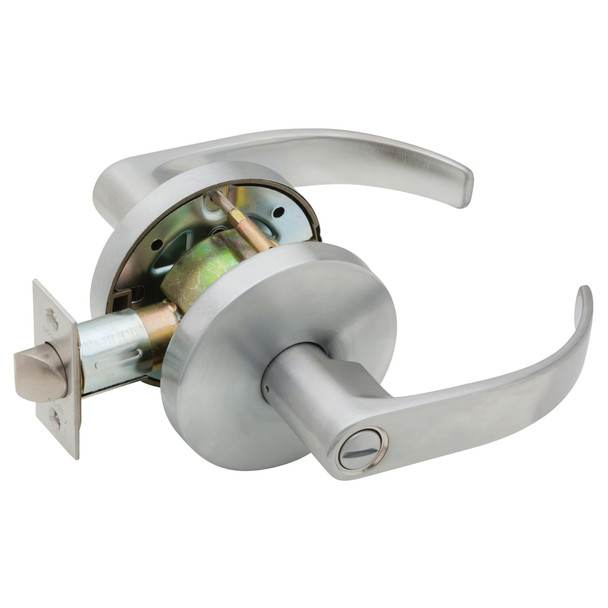

The Falcon W201D is an affordable cylindrical lock built for lower-traffic commercial doorways in government, retail, industrial, and multi-family settings. This non-handed lock accepts both standard six-pin cylinders and small-format interchangeable cores, offering flexible keying and re-keying options with stainless steel components for durability.
The W201D fits standard 1-3/8" to 1-3/4" door thickness and is compatible with cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent. Available with Falcon G keyway, Schlage C keyway, or optional keyways. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, master keying, and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: W201D Q
- Finish: 626
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard (2-3/8" also available)
- Cylinder: 6-pin conventional or 6- or 7-pin interchangeable core
- Keyway: G standard (Schlage C available)
- Bolt Projection: 1/2" stainless steel
- Latch Face: 1-1/8" x 2-1/4"
- Strike: 4-7/8" x 1-1/4" ANSI
- Handing: Non-handed
- UL Listed: 3-hour door assemblies
