Description

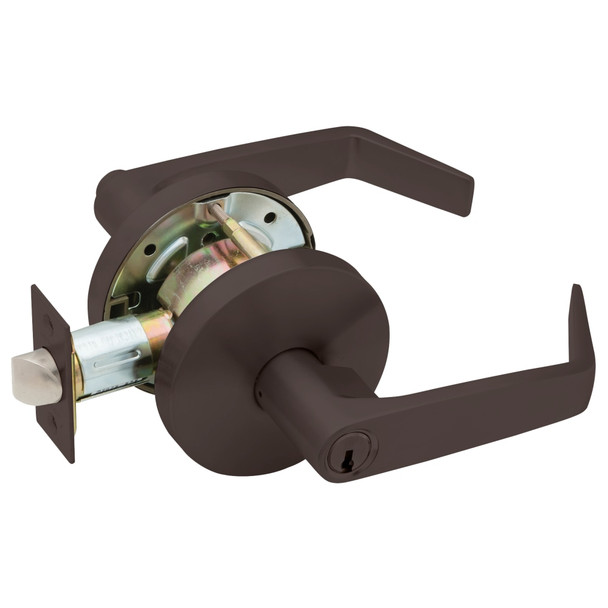

The Falcon W Series W511CP6D is an affordable cylindrical lock designed for government, retail, industrial and multi-family buildings with moderate traffic. It features a conventional cylinder with 6-pin pinning, brass and cold-formed steel construction with zinc plating, and stainless steel springs for rust resistance. This non-handed lock solves the need for reliable security on a budget across diverse commercial applications.
Compatible with standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent, this lock installs on doors 1-3/8" to 1-3/4" thick with 2-3/4" backset standard. Removable cylinder assemblies allow easy rekeying. As an authorized Falcon dealer, E.D. Locks provides expert support for keying options, master keying availability and installation guidance. Contact sales@edlocks.com or call 1-877-207-6067 for assistance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" available
- Cylinder: 6-pin conventional, removable for rekeying
- Bolt Projection: 1/2" stainless steel
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Trim: Heavy wrought brass or bronze roses; pressure-cast zinc levers
- Handing: Non-handed
- Keys Furnished: Two nickel silver keys standard
- Keyways: G keyway standard (Falcon); A keyway (I/C core); Schlage C available
