Description

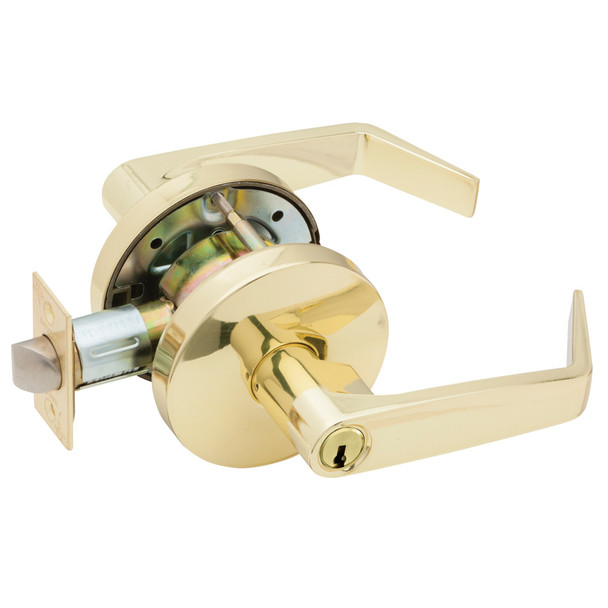

The Falcon W511CP6D 605 is an affordable cylindrical lock designed for lower-traffic commercial doorways in government, retail, industrial, and multi-family buildings. This non-handed lock suits most standard door trim with conventional cylinders and small format interchangeable cores, solving the need for reliable, budget-friendly security without complexity.
Compatible with doors 1-3/8" to 1-3/4" thick and standard 2-3/4" backset, this lock accepts cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent. Master keying is available on Falcon and Schlage C keyways. Contact E.D. Locks' expert team at sales@edlocks.com or 1-877-207-6067 for keying assistance and authorized dealer support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: 6-pin, removable for rekeying; also available with 6- or 7-pin interchangeable cores
- Keyways: G keyway standard on Falcon cylinders; A keyway on I/C cores; Schlage C available
- Latch: 1/2" stainless steel bolt projection, UL listed for 3-hour fire-rated doors
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keys: Two nickel silver keys included
