Description

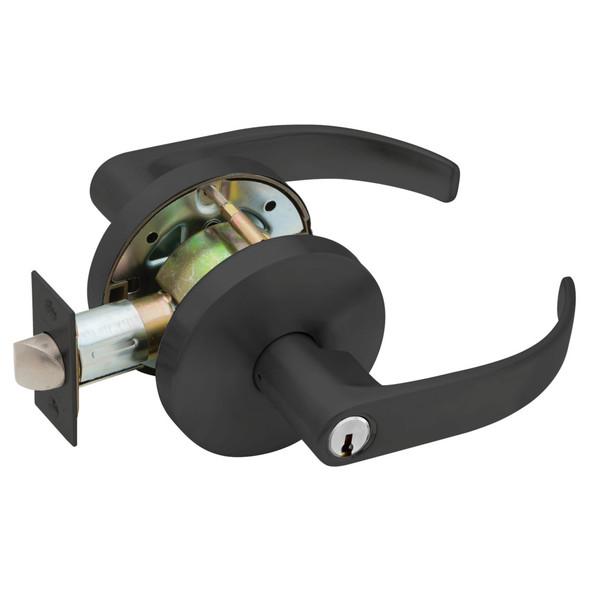

The Falcon W511CP6D Q 625 is a commercial cylindrical lock designed for government, retail, industrial, and multi-family applications where an affordable, reliable solution is needed. Built with brass and cold-formed steel components, zinc-plated and dichromated for rust resistance, this lock provides solid security at a budget-conscious price for lower to moderate traffic doorways.
Compatible with standard 6-pin cylinders and SFIC interchangeable cores from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, this lock fits most commercial door trim with flexible rose diameters and lever styles. Fits doors 1 3/8" to 1 3/4" thick with standard 2 3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, masterkeying, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: W511CP6D Q 625
- Finish: Satin Chrome (625)
- Door Thickness: 1 3/8" to 1 3/4" standard
- Backset: 2 3/4" standard; 2 3/8" also available
- Bolt Projection: 1/2" stainless steel
- Cylinder: 6-pin removable, re-keyable
- Keyways: G keyway standard on Falcon cylinders; A keyway standard on I/C cores; Schlage C keyway available with master keying
- Latch Face: 1 1/8" x 2 1/4" (2 3/4" backset)
- Strike: 4 7/8" x 1 1/4" ANSI with curved lip
- Material: Brass and cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Handing: Non-handed
- UL Listed: 3-hour door assemblies
- Keys Included: Two nickel silver keys standard
