Description

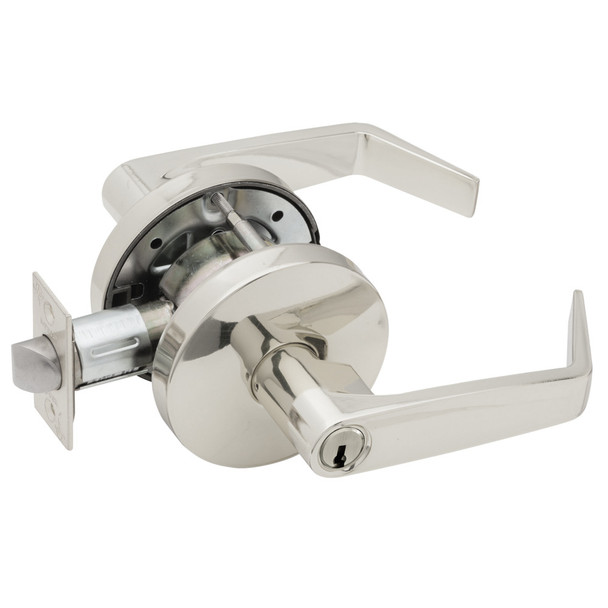

The Falcon W511CP6D cylindrical lock is an affordable, durable choice for moderate-traffic commercial doors in government, retail, industrial, and multi-family buildings. Non-handed design with brass or steel construction and stainless steel springs resists corrosion, while removable cylinders allow easy rekeying on-site.
Compatible with standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent, this lock fits door thicknesses of 1 3/8 to 1 3/4 inches with backsets of 2 3/8 or 2 3/4 inches. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for help selecting the right keyway, finish, and master keying setup.
Specifications
- Door Thickness: 1 3/8 to 1 3/4 inch standard
- Backset: 2 3/4 inch standard; 2 3/8 inch also available
- Cylinder: 6-pin conventional or 6-pin/7-pin interchangeable core
- Keyways: G keyway standard on conventional cylinders; A keyway standard on I/C core cylinders; Schlage C keyway available
- Latch Bolt: 1/2 inch projection, stainless steel, UL listed for 3-hour door assemblies
- Latch Faces: 1 inch x 2 1/4 inch (2 3/8 backset) or 1 1/8 inch x 2 1/4 inch (2 3/4 backset)
- Strike: 4 7/8 inch x 1 1/4 inch ANSI with curved lip
- Finish: Satin Chrome (626)
- Material: Brass or cold-formed steel mechanism, zinc plated and dichromated; stainless steel springs; wrought brass or bronze roses
- Handing: Non-handed
- Keying: Includes two nickel silver keys standard; master keying available on Falcon and Schlage C keyways
