Description

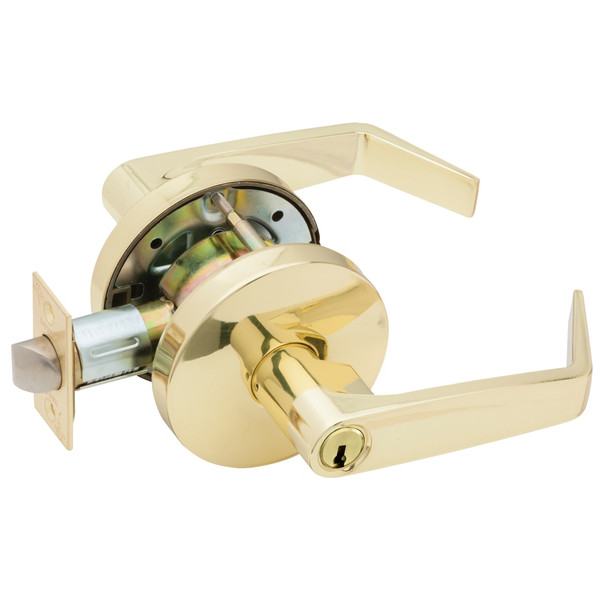

The Falcon W Series cylindrical lock delivers affordable, reliable security for moderate-traffic commercial doors in government, retail, industrial and multi-family settings. This non-handed lock accommodates door thicknesses from 1-3/8" to 1-3/4" and features brass or cold-formed steel components with zinc plating and stainless steel springs for rust resistance and durability.
Compatible with standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent, the W511CP6D SRD 605 is easily rekeyed or upgraded to interchangeable cores. Installed with two nickel silver keys and a 1/2" stainless steel latch, it meets UL standards for 3-hour fire-rated door assemblies. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying, master key, and installation guidance.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Cylinder: 6-pin pinning, removable for rekeying
- Latch: 1/2" stainless steel bolt projection, self-adjusting
- Latch Faces: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keyways: G keyway standard; Schlage C available with master key
- Keys Furnished: Two nickel silver keys
