Description

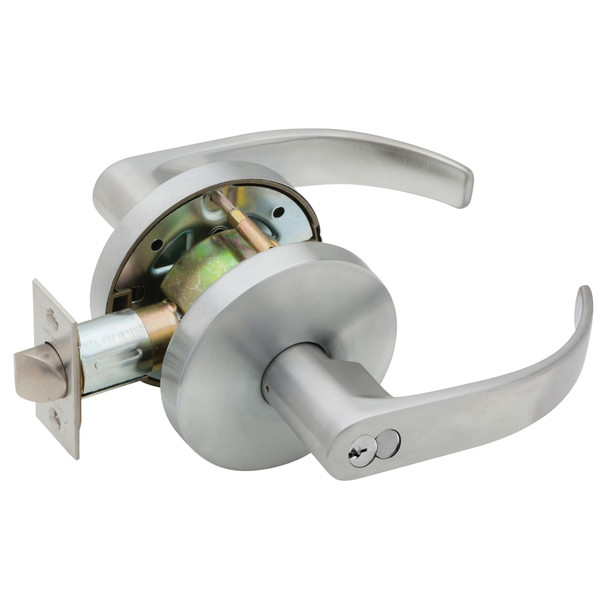

The Falcon W711HD Q 626 is an affordable cylindrical lock designed for government, retail, industrial, and multi-family buildings with moderate traffic. It features a conventional cylinder with interchangeable core compatibility across Falcon, Schlage, Corbin-Russwin, Yale, and Sargent products, making it ideal for facilities that need flexible keying options and easy rekeying without removing the lock.
Fits standard 1-3/8" to 1-3/4" door thickness with 2-3/4" backset (2-3/8" available). Non-handed design simplifies inventory. Contact our team at sales@edlocks.com or 1-877-207-6067 for master keying assistance, keyway selection, and expert installation guidance. As an authorized Falcon dealer, we provide product expertise and support you won't find elsewhere.
Specifications
- Brand: Falcon
- Model: W711HD Q 626
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Bolt Projection: 1/2"
- Latch Face: 1-1/8" x 2-1/4" (2-3/4" backset) or 1" x 2-1/4" (2-3/8" backset)
- Cylinder: 6-pin conventional, removable for rekeying
- Keyway: G keyway standard on Falcon cylinders; A keyway on interchangeable core; Schlage C available
- Handing: Non-handed
- Material: Brass or cold-formed steel cylinder housing; stainless steel bolt and springs; zinc plated and dichromated
- Trim: Heavy wrought brass or bronze roses over steel inserts; pressure-cast zinc levers
- Keys Included: Two nickel silver keys
- UL Listed: 3-hour door assemblies
- Compatible Cores: 6-pin or 7-pin interchangeable core available; accepts standard cylinders from Falcon, Schlage, Corbin-Russwin, Yale, and Sargent
