Description

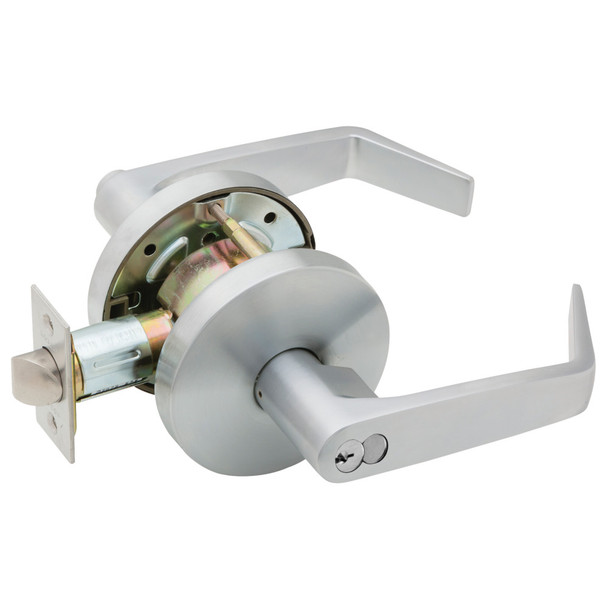

The Falcon W711HD D 626 is a cylindrical lock designed for affordable security in lower-traffic commercial doorways across government, retail, industrial, and multi-family buildings. This non-handed lock accepts both standard cylinders and small format interchangeable cores (SFIC), making it versatile for various keying needs and keyways including Falcon G, Schlage C, and compatibility with Corbin-Russwin, Yale, and Sargent cylinders.
Built for door thicknesses of 1-3/8 inch to 1-3/4 inch with standard 2-3/4 inch backset (2-3/8 inch also available), this lock features brass or cold-formed steel construction with zinc plating and stainless steel springs for durability. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, master key options, and installation to ensure you get the right security solution.
Specifications
- Door Thickness: 1-3/8 inch to 1-3/4 inch standard
- Backset: 2-3/4 inch standard; 2-3/8 inch also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: Six-pin pinning, removable for re-keying; also available with 6-pin or 7-pin interchangeable core cylinders
- Cylinder Material: Solid brass housing and plugs
- Keyways: G keyway standard on Falcon cylinders; A keyway standard on interchangeable core cylinders; Schlage C also available
- Bolt Projection: 1/2 inch stainless steel, UL listed for 3-hour door assemblies
- Latch Faces: 1 inch x 2-1/4 inch (2-3/8 inch backset) or 1-1/8 inch x 2-1/4 inch (2-3/4 inch backset)
- Strike: 4-7/8 inch x 1-1/4 inch ANSI with curved lip
- Trim: Heavy wrought brass or bronze roses over steel inserts; pressure-cast zinc levers
- Keys: Two nickel silver keys standard
- Handing: Non-handed
- Master Keying: Available on all Falcon and Schlage C keyways
