Description

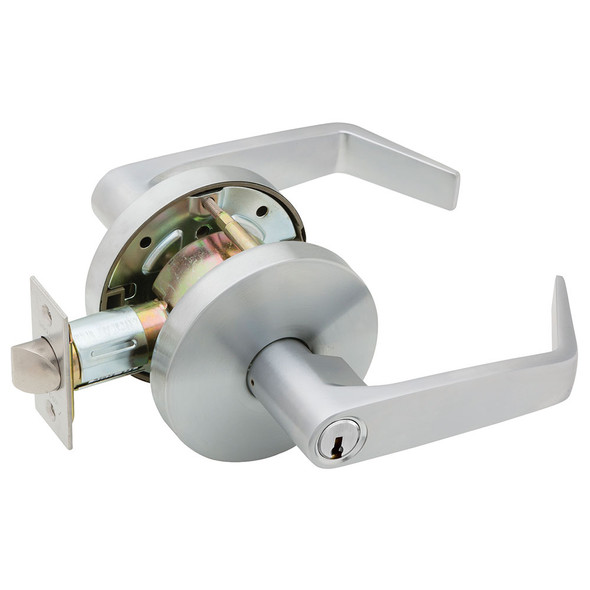

The Falcon W711PD Q 626 is a cylindrical lock designed for cost-effective security in lower-traffic commercial doorways across government, retail, industrial and multi-family buildings. Its brass and stainless steel construction with zinc-plated finish resists rust, while the removable cylinder allows easy rekeying without removing the lock from the door.
This lock accommodates standard 6-pin cylinders from Falcon, Schlage, Corbin-Russwin, Yale and Sargent, and fits door thicknesses of 1-3/8" to 1-3/4" with standard 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert consultation and master key setup assistance; contact sales@edlocks.com or 1-877-207-6067 for keying guidance and project support.
Specifications
- Door Thickness: 1-3/8" to 1-3/4" standard
- Backset: 2-3/4" standard; 2-3/8" also available
- Mechanism: Brass or cold-formed steel, zinc plated and dichromated; stainless steel springs
- Cylinder: 6-pin removable, interchangeable core available
- Cylinder Housing: Solid brass with stainless steel springs
- Keyways: G keyway standard on Falcon cylinders; A keyway standard on I/C cores; Schlage C available
- Latch: 1/2" stainless steel bolt projection, self-adjusting front, UL listed for 3-hour fire-rated doors
- Latch Face: 1" x 2-1/4" (2-3/8" backset) or 1-1/8" x 2-1/4" (2-3/4" backset)
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Handing: Non-handed
- Keys: Two nickel silver keys furnished standard
