Description

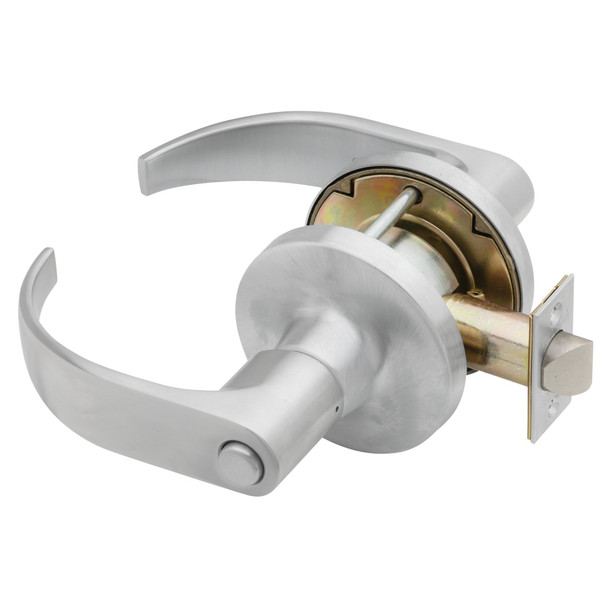

The Falcon T291S Q 626 is an extra heavy-duty Grade 1 cylindrical lock built for high-traffic institutional applications like schools, hospitals, and government buildings. Its compression spring design exceeds ANSI/BHMA Grade 1 testing requirements, delivering reliability where durability matters most. The removable cylinder design simplifies re-keying and retrofit installations.
This lock accommodates standard 1-3/4" to 2-1/8" doors with a 2-3/4" backset (2-3/8" available). Cylinder options include conventional 6-pin, 7-pin, and interchangeable core formats in multiple keyways. As an authorized Falcon dealer, E.D. Locks provides expert guidance on backset adapters, thin-door kits, and custom pinning. Contact sales@edlocks.com or call 1-877-207-6067 for application support.
Specifications
- Grade: ANSI/BHMA Grade 1
- Door Thickness: 1-3/4" to 2-1/8" standard; thin door adapter kit available
- Backset: 2-3/4" standard; 2-3/8" available; 5" backset link available
- Bolt Projection: 9/16" standard; 3/4" available
- Latch Faceplate: 2-1/4" x 1-1/8" with square corners
- Strike: 4-7/8" x 1-1/4" ANSI with curved lip
- Cylinders: 6-pin (pinned in 5, 6-chamber pinning available), 7-pin, or interchangeable core (SFIC/large format)
- Keyways: G keyway (conventional); A keyway (I/C core); optional keyways available
- Cylinder Housing: Solid brass with phosphor bronze springs
- Keys: Two nickel silver keys furnished standard
- Trim Material: Heavy wrought brass or bronze roses; pressure cast levers
- Construction: Brass or cold formed steel parts, zinc plated and dichromated; stainless steel springs
- Handing: Non-handed
