Description

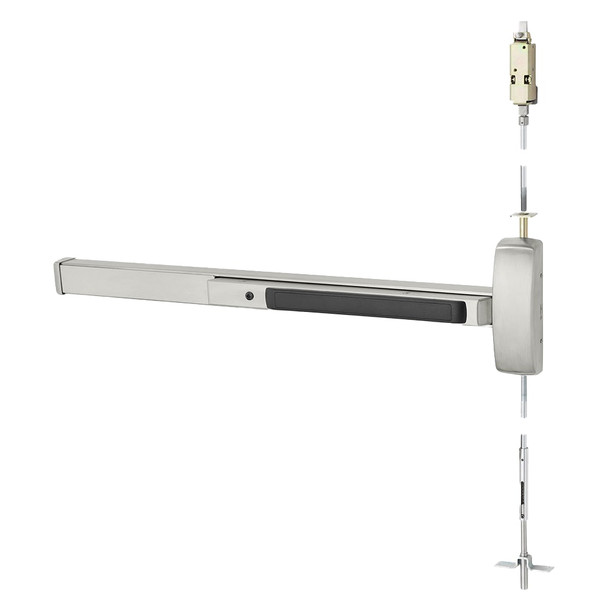

The Sargent 80 Series WD8674G-12V is a heavy-duty exit device engineered for commercial buildings requiring durable, code-compliant emergency egress hardware. Ideal for metal doors 1.75 inches or thicker, this rim-mounted device exceeds ANSI/BHMA Grade 1 standards for cycle strength and durability, with modular construction and minimal moving parts for maintenance-free operation.
This left-hand reverse (LHR) model fits standard 32-inch door widths and ships complete with stainless steel top bolt and fasteners. Compatible with optional electric features including delayed egress, alarms, photoluminescent coatings, and latch retraction systems. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration, installation, and keying. Contact sales@edlocks.com or call 1-877-207-6067 for application support and free shipping on orders over $450.
Specifications
- Brand: Sargent
- Model: WD8674G-12V ETJ
- Configuration: Rim mounted, left-hand reverse
- Door Width: 32 inches
- Minimum Door Thickness: 1.75 inches (44mm)
- Maximum Door Height: 96 inches
- Device Centerline Height: 41 inches (standard)
- Center Case Dimensions: 8.375 inches x 2.625 inches
- Pushbar Projection: 3 inches (neutral), 2.125 inches (depressed)
- Top Bolt: Stainless steel
- Standard Dogging: Hex key (non-fire-rated)
- Strike: 650 top and 606 bottom (panic and fire-rated)
- Performance: Exceeds ANSI/BHMA Grade 1
