Description

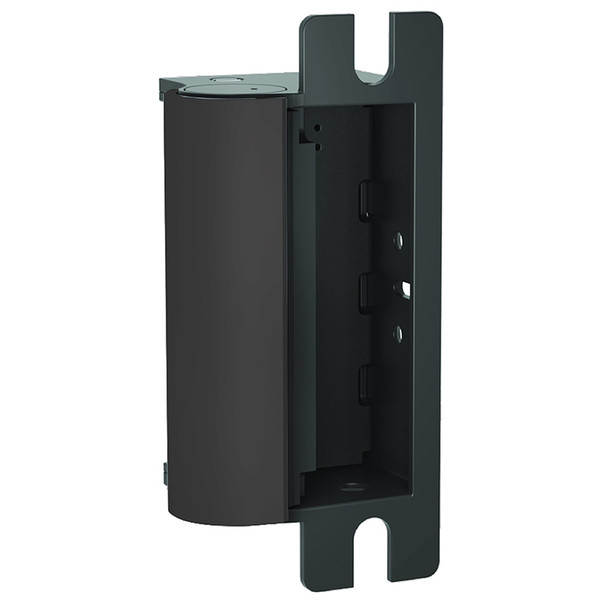

The HES 1006-F is a heavy-duty electric strike for metal and wood frame applications, engineered for maximum security and reliability. It solves access control challenges in commercial facilities, apartments and institutions where fail-secure operation and exceptional durability are essential. The dual interlocking plunger design and stainless steel construction deliver industry-leading performance.
This non-handed strike accommodates ANSI 4-7/8" lock plates and up to 1" deadbolts, with 27 interchangeable faceplates for flexible installation. It operates on 12 or 24VDC continuous duty with plug-in connectors for easy setup. E.D. Locks is an authorized HES dealer offering expert guidance, technical support at 1-877-207-6067 or sales@edlocks.com, and the full manufacturer warranty.
Specifications
- Brand: HES
- Model: 1006-F
- Static Strength: 2,500 lbs (fail secure)
- Dynamic Strength: 350 ft-lbs (fail secure)
- Endurance: 1,000,000 cycles
- Electrical: 0.45 Amps at 12VDC or 0.25 Amps at 24VDC, continuous duty
- Construction: Stainless steel
- Operation: Dual voltage (12 or 24VDC), non-handed, fail secure standard
- Compatibility: ANSI 4-7/8" strike plate, up to 1" deadbolt
- Features: Dual interlocking plungers, internally mounted solenoid, plug-in connector, tamper resistant
- Faceplate Options: 27 interchangeable designs
- Finish Options: Satin stainless steel (630), bright brass (605), satin brass (606), satin bronze (612), bronze toned (613), bright stainless steel (629), black (BLK)
- Warranty: Five year limited
- Optional: Fail safe, latchbolt monitor (LBM), latchbolt strike monitor (LBSM)
